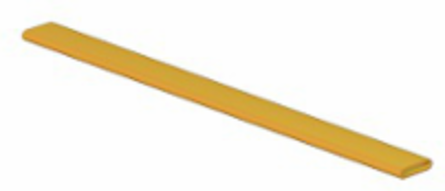

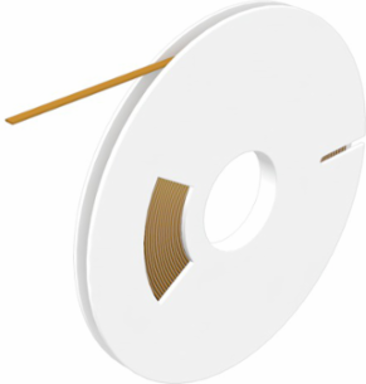

Weidmuller 1489530000 HSS 0.8-2.4 EL Y13M
- MPN: 1489530000
- PPN: WDM-1489530000
CAD
$103.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 0.8 - 2.4 mm, x 4.2 mm, yellow
Specifications
General Data
| Colour | yellow |
|---|---|
| Length | 13,000 mm |
| Operating temperature range | -55...135 °C |
| Width | 4.2 mm |
| Halogen | Yes |
|---|---|
| Material | Polyolefine |
| Recommended industries | Plant manufacture, Energy, Device manufacturer, Machinery |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E366310 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 13,000 mm |
|---|---|
| Width | 4.2 mm |
| Depth | 0.77 mm |
| Net weight | 75 g |
| Length (inches) | 511.81 inch |
|---|---|
| Width (inches) | 0.165 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 0.8 - 2.4 mm |
|---|---|
| Conductor O.D., min. | 0.8 mm |
| Conductor cross-section, min. | 0.25 mm² |
| Rate of shrinkage | 3:1 |
| Conductor O.D., max. | 2.4 mm |
|---|---|
| Conductor cross-section, max. | 0.5 mm² |
| Halogen | Yes |
| Recommended shrinking temperature | 90 °C |
