Weidmuller 1489630000 HSS 1.0-3.2 EL W13M
- MPN: 1489630000
- PPN: WDM-1489630000
CAD
$110.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

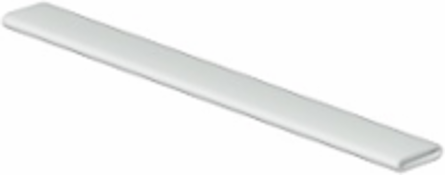

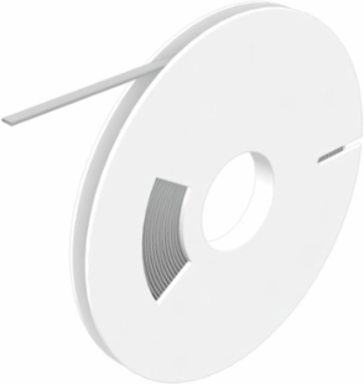

Conductor and cable markers, 1 - 3.2 mm, x 5.6 mm, white
Specifications
General Data
- Colour
- white
- Length
- 13,000 mm
- Operating temperature range
- -55...135 °C
- Width
- 5.6 mm
HalogenYes
MaterialPolyolefine
Recommended industriesPlant manufacture, Energy, Device manufacturer, Machinery
compatible printer2599430000 2599440000 1140490000
Approvals
- Approvals
- cURus
- UL File Number Search
- E366310
ROHSConform
Dimensions And Weights
- Length
- 13,000 mm
- Width
- 5.6 mm
- Depth
- 0.77 mm
- Net weight
- 86 g
Length (inches)511.81 inch
Width (inches)0.22 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 1 - 3.2 mm
- Conductor O.D., min.
- 1 mm
- Conductor cross-section, min.
- 0.5 mm²
- Rate of shrinkage
- 3:1
Conductor O.D., max.3.2 mm
Conductor cross-section, max.1.5 mm²
HalogenYes
Recommended shrinking temperature90 °C
