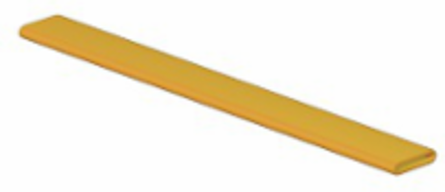

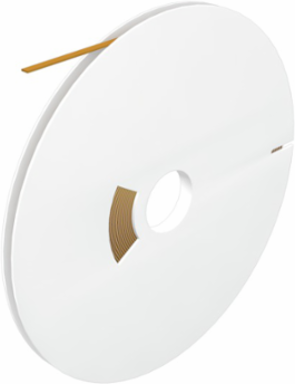

Weidmuller 1505770000 HSS 1.0-3.2 EL Y30M
- MPN: 1505770000
- PPN: WDM-1505770000
CAD
$263.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 1 - 3.2 mm, x 5.6 mm, yellow
Specifications
General Data
| Colour | yellow |
|---|---|
| Length | 30,000 mm |
| Operating temperature range | -55...135 °C |
| Width | 5.6 mm |
| Halogen | Yes |
|---|---|
| Material | Polyolefine |
| Recommended industries | Plant manufacture, Energy, Device manufacturer, Machinery |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E366310 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 30,000 mm |
|---|---|
| Width | 5.6 mm |
| Depth | 0.77 mm |
| Net weight | 172 g |
| Length (inches) | 1,181.1 inch |
|---|---|
| Width (inches) | 0.22 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 1 - 3.2 mm |
|---|---|
| Conductor O.D., min. | 1 mm |
| Conductor cross-section, min. | 0.5 mm² |
| Rate of shrinkage | 3:1 |
| Conductor O.D., max. | 3.2 mm |
|---|---|
| Conductor cross-section, max. | 1.5 mm² |
| Halogen | Yes |
| Recommended shrinking temperature | 90 °C |
