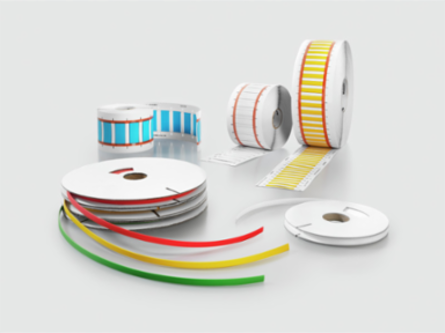

Weidmuller 1562970000 HSS-HF 2.4-4.8 EL G30M
- MPN: 1562970000
- PPN: WDM-1562970000
CAD
$286.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 2.4 - 4.8 mm, x 7.6 mm, green
Documentation & Downloads
Specifications
General Data
| Colour | green |
|---|---|
| Length | 30,000 mm |
| Number per roll | 1 |
| Width | 7.6 mm |
| Halogen | No |
|---|---|
| Material | Polyolefine |
| Operating temperature range | -55...105 °C |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 30,000 mm |
|---|---|
| Width | 7.6 mm |
| Depth | 0.9 mm |
| Net weight | 293 g |
| Length (inches) | 1,181.1 inch |
|---|---|
| Width (inches) | 0.299 inch |
| Depth (inches) | 0.035 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 2.4 - 4.8 mm |
|---|---|
| Conductor O.D., min. | 2.4 mm |
| Conductor cross-section, min. | 0.75 mm² |
| Rate of shrinkage | 2:1 |
| Conductor O.D., max. | 4.8 mm |
|---|---|
| Conductor cross-section, max. | 4 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
