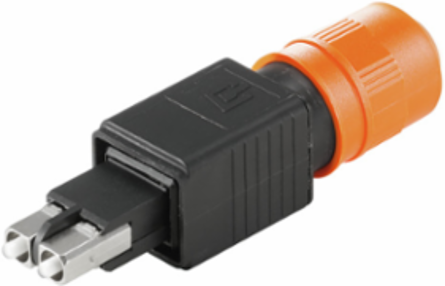

Weidmuller 1963380000 IE-PS-V04P-2SC-POF
- MPN: 1963380000
- PPN: WDM-1963380000
CAD
$113.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FO connector, Version 4, SC-RJ POF, IP67
Documentation & Downloads
Specifications
General Data
- Colour
- Miscellaneous
- Connection 2
- Rapid connection system: crimping, cutting
- Fibre type
- POF
- Housing material, insert
- PA, Zinc diecast
- Plugging cycles
- 500
- Return loss (attenuation)
- 40 dB singlemode; 30 dB multimode
- Sheath diameter, min.
- 5 mm
Connection 1SCRJ
Description of articleVersion 4, SC-RJ POF
Housing main materialPA UL 94 V0
Insertion loss0.5 dB singlemode, 0.4 dB multimode, ≤ 1.0 dB POF
Protection degreeIP67
Sheath diameter, max.10 mm
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 46.6 g
Standards
- Connector standard
- IEC 61076-3-106 Var. 4, IEC 61754-24
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-10
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
