Weidmuller 1964430000 IE-BI-SCRJ2SC-MM-C
- MPN: 1964430000
- PPN: WDM-1964430000
CAD
$35.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

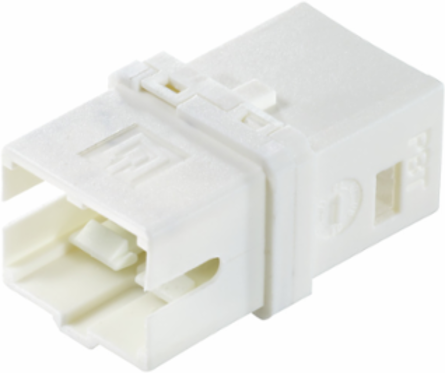

SC insert, Bulkhead insert SCRJ to 2 SC, multimode
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 1 | SC |
| Description of article | Bulkhead insert SCRJ to 2 SC, multimode |
| Housing main material | PA |
| Plugging cycles | 1000 |
| Return loss (attenuation) | ≥ 30 dB |
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
|---|---|
| Connection 2 | SCRJ |
| Fibre type | Multimode, POF |
| Insertion loss | ≤ 0.4 dB |
| Protection degree | IP67 with housing |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 16.7 g |
|---|
Standards
| Connector standard | IEC 61754-4, IEC 61754-24 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
