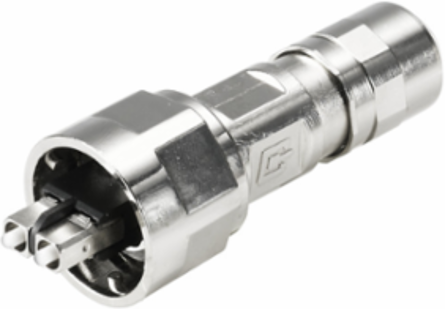

Weidmuller 1963280000 IE-PS-V01M-2SC-POF
- MPN: 1963280000
- PPN: WDM-1963280000
CAD
$184.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FO connector, Version 1, SC-RJ POF, IP67
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 2 | Rapid connection system: crimping, cutting |
| Fibre type | POF |
| Housing material, insert | PA, Zinc diecast |
| Plugging cycles | 500 |
| Return loss (attenuation) | 40 dB singlemode; 30 dB multimode |
| Sheath diameter, min. | 5 mm |
| Connection 1 | SCRJ |
|---|---|
| Description of article | Version 1, SC-RJ POF |
| Housing main material | Zinc diecast |
| Insertion loss | 0.5 dB singlemode, 0.4 dB multimode, ≤ 1.0 dB POF |
| Protection degree | IP67 |
| Sheath diameter, max. | 10 mm |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 125.5 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 1, IEC 61754-24 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
| UNSPSC | 30-21-18-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
