Weidmuller 1058150000 IE-BSS-V14M-LCD-SM-C
- MPN: 1058150000
- PPN: WDM-1058150000
CAD
$80.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

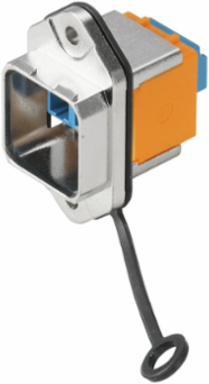

Flange FO, Variant 14 standardized flange, LC Duplex coupling, Singlemode
Documentation & Downloads
Specifications
General Data
- Colour
- Miscellaneous
- Connection 2
- LC Duplex
- Fibre type
- Singlemode
- Insertion loss
- ≤ 0.5 dB
- Return loss (attenuation)
- ≥ 40 dB
- Type of mounting
- 2 screws
Connection 1LC Duplex
Description of articleVariant 14 standardized flange, LC Duplex coupling
Housing main materialZinc diecast
Plugging cycles500
Seal materialEPDM
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 24.81 g
Standards
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 61754-20
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
