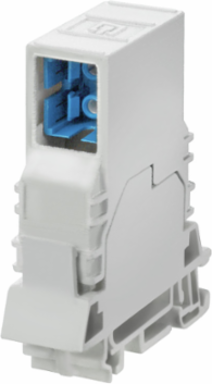

Weidmuller 8947000000 IE-TO-SCRJ-SM
- MPN: 8947000000
- PPN: WDM-8947000000
CAD
$86.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mounting rail outlet, fibre-optic, SCRJ, Singlemode, IP20
Documentation & Downloads
Specifications
General Data
- Colour
- Light Grey
- Connection 2
- SCRJ
- Housing main material
- PA UL 94 V0
- Plugging cycles
- 1000
- Type of mounting
- TS 35
Connection 1SCRJ
Fibre typeSinglemode
Insertion loss≤ 0.5 dB
Protection degreeIP20
Approvals
- Approvals
- UL
- UL File Number Search
- E477798
ROHSConform

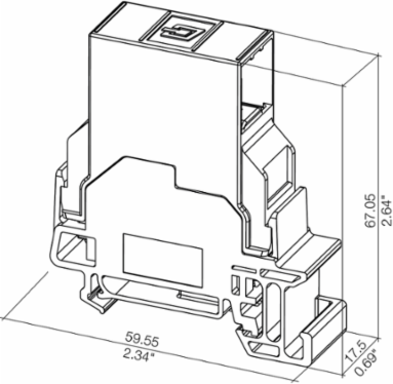

Dimensions And Weights
- Net weight
- 38.1 g
Standards
- Connector standard
- IEC 61754-24
Certificate No. (UL)E477798
Classifications
- ETIM 6.0
- EC000313
- eClass 9.0
- 27-44-03-20
- eClass 10.0
- 27-44-03-20
ETIM 7.0EC000313
eClass 9.119-17-01-25
UNSPSC30-21-18-01
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
- Temperature range, installation, max.
- 70 °C
Operating temperature, min.-40 °C
Temperature range, installation, min.-25 °C
