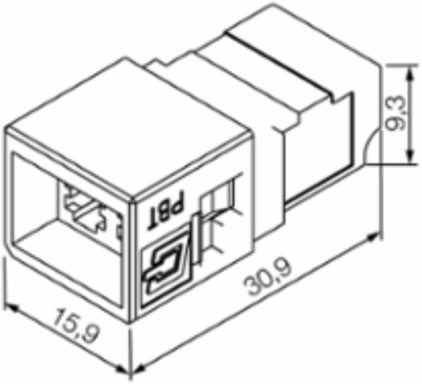

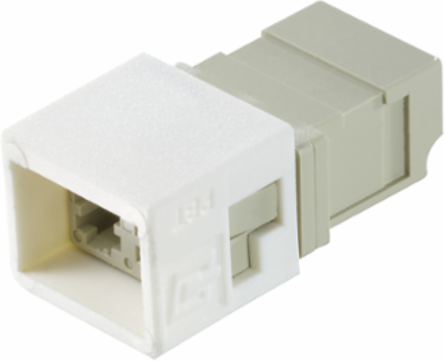

Weidmuller 1962880000 IE-BI-LCD-SM-C
- MPN: 1962880000
- PPN: WDM-1962880000
CAD
$44.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LC insert, Bulkhead insert LC duplex, singlemode
Documentation & Downloads
Specifications
General Data
- Configuration
- Connector and flange insert for variant 1, 4 and 14 housings
- Description of article
- Bulkhead insert LC duplex, singlemode
- Housing main material
- PBT diecast zinc
- Insertion loss
- ≤ 0.5 dB
- Protection degree
- IP67 with housing
Connection 1LC Duplex
Fibre typeSinglemode
Humidity0...85 % rel. humidity
Plugging cycles1000
Return loss (attenuation)≥ 40 dB
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 14.6 g
Standards
- Connector standard
- IEC 61754-20
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-01
Temperatures
- Humidity
- 0...85 % rel. humidity
- Operating temperature, min.
- -40 °C
Operating temperature, max.70 °C
Operating temperature-40 °C...70 °C
