Weidmuller 2588270000 IE-CDM-V14MRJSCP/VAPM-C II
- MPN: 2588270000
- PPN: WDM-2588270000
CAD
$2889.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

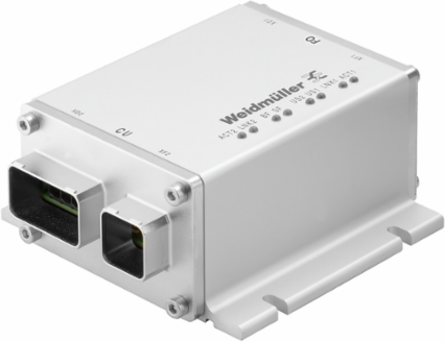

Media converter, FreeCon, IP65
Documentation & Downloads
Specifications
Electrical Properties
- Baud rate
- 100 MB
- LED indicator
- P1: port active, P2: port active, SF: general error, BF: bus error, US1: voltage 1 (electronics), US2: voltage 2, ACT1: activity Port1, ACT2: activity Port2
- Operational voltage range
- 18…30 V DC
Current consumption200 mA typical
Operating voltage24 V DC
ProtocolPROFINET IRT
General Data
- Data interface
- PROFINET PushPull SCRJ POF (V14), PROFINET PushPull RJ45 (V14)
- Plugging cycles
- ≥ 100
- Protection degree
- IP65
- Wiring
- PROFINET
Housing main materialAluminium profile, Zinc die cast, electroplated lid
Power interfacePROFINET PushPull Power
UL 94 flammability ratingV-0
Approvals
- Approvals
- CULUS
UL File Number SearchE141197

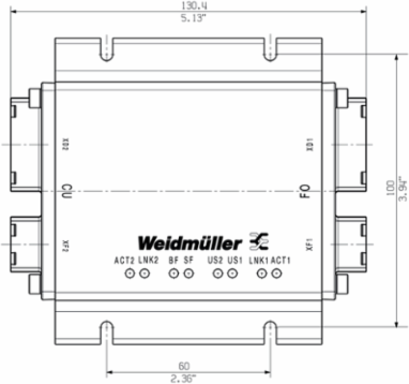

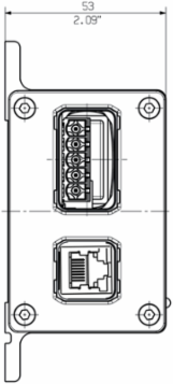

Dimensions And Weights
- Net weight
- 557.7 g
Standards
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 61754-24, IEC 60603-7-51
- PROFINET specification
- Conformance Class C acc. V2.3
Certificate no. (cULus)E141197
Product Information
- Product information
- Further development of 1324440000, IE-CDM-V14MRJSCP/VAPM-C. For commissioning, the new GSDML file (see Downloads) must be installed.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 55 °C
- Operating temperature
- -20 °C...55 °C
Operating temperature, min.-20 °C
