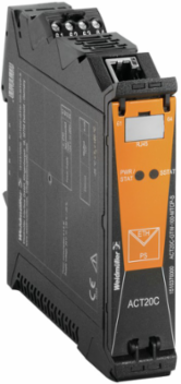

Weidmuller 1510370000 ACT20C Gateway, Ethernet IP, Modbus TCP, 4.472 Inch Depth, 117.2 mm Height
- MPN: 1510370000
- PPN: WDM-1510370000
CAD
$758.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gateway for ACT20C station, Configurable, Ethernet IP, Modbus TCP, TCP/IP functions, Distributes supply voltage to rail bus
Documentation & Downloads
Specifications
General Data
| Configuration | With FDT/DTM software, DHCP |
|---|---|
| Rail | TS 35 |
| Power consumption, max. | 1.5 W |
|---|---|
| Voltage supply | 18.0 … 31.2 V DC |
Probability Of Failure
| MTTF | 160 Years |
|---|
Approvals
| Approvals | CULUS, DNV GL, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Communication
| Addressing | DHCP or manual adjustment |
|---|---|

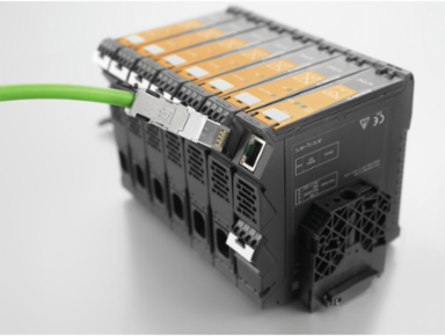

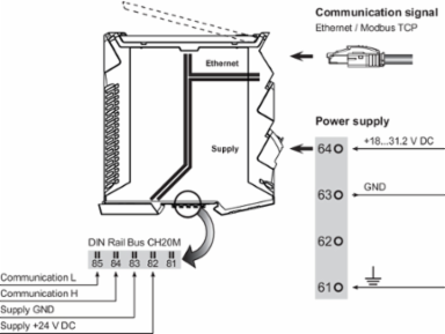

| Interface | Ethernet 10/100 Base T, Jack plug for CBX200, Communication via CH20M rail bus with all current measuring transducers (ACT20C-CMT-x) |
| RJ45 ports | 10/100BaseT(X), auto negotiation |
| Configuration | With FDT/DTM software, DHCP |
|---|---|
| Protocol | Modbus/TCP, DHCP Server/Client |

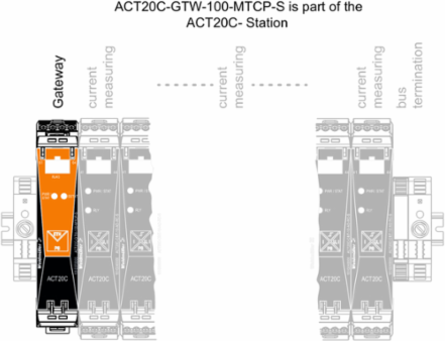

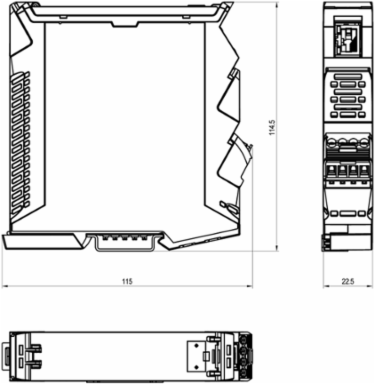

Dimensions And Weights
| Width | 22.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 113.6 mm |
| Net weight | 150 g |
| Width (inches) | 0.886 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.472 inch |
Connection Data
| Type of connection | Screw connection, RJ45 plug-in connector |
|---|---|
| Tightening torque, max. | 3.5 Lb In |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire cross-section, solid, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Tightening torque, min. | 0.5 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
Input
| Type | receives data via the CH20M rail bus from several ACT20C-CMT communicative current-measuring transducers |
|---|
Classifications
| ETIM 6.0 | EC002475 |
|---|---|
| eClass 9.0 | 27-21-01-23 |
| eClass 10.0 | 27-21-01-23 |
| ETIM 7.0 | EC002475 |
|---|---|
| eClass 9.1 | 27-21-01-23 |
Product Information
| Product information | The ACT20C-GTW-100-MTCP-S gateway is a modbus TCP slave in accordance with IEC 61158. It connects ACT20C devices to an Ethernet network for diagnostic, configuration and status monitoring purposes. Properties RJ45 port with Ethernet TCP/IP Jack socket for direct point-to-point communication via a CBX200 USB adapter Configuration using the standard FDT/DTM Station management with “Plug & Produce” and “Hot Swapping” Operational status and error display on a front panel LED according to NE44, NE107 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | IEC 61326-1 |
|---|---|
| Pollution severity | 2 |
| Surge voltage category | II |
| Impulse withstand voltage | 0,5 kV (1.2/50 μs) |
|---|---|
| Rated voltage ⁄ test voltage: Ethernet interface to supply ⁄ functional earth to supply ⁄ Ethernet interface | 30 V AC RMS |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Ambient temperature | -25 °C...+60 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...60 °C |
| Storage temperature | -40 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
