Weidmuller 1403680100 IE-CSPD5US0100VAPVAP-X
- MPN: 1403680100
- PPN: WDM-1403680100
CAD
$313.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

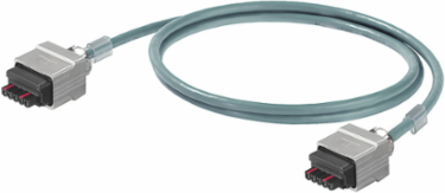

System cable, PushPull Power, PushPull Power, PUR, 10 m
Documentation & Downloads
Specifications
Electrical Properties
- Current-carrying capacity at 50 °C
- 16 A
Rated voltage24 V
Cable Structure
- Wire connection cross section AWG, max.
- AWG 16
- Insulation
- TPE
- Material sheath
- PUR
- Sheathing colour
- grey (similar to RAL 7001)
Cross-section5*1.5 mm²
Number of wires5
Sheath diameter, max.9 mm
Approvals
- Approvals
- EAC
ROHSConform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 5 x cable diameter
Dimensions And Weights
- Length
- 10 m
- Net weight
- 1,406 g
Length (inches)0.394 inch
Plug
- Connector left
- PushPull Power
Connector rightPushPull Power
Standards
- Connector standard
- in accordance with PROFINET specification
Classifications
- ETIM 6.0
- EC000993
- eClass 9.0
- 27-06-20-01
- eClass 10.0
- 27-06-01-05
ETIM 7.0EC003248
eClass 9.127-06-23-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
- Operating temperature
- -40 °C...80 °C
Operating temperature, min.-40 °C
