Weidmuller 2003370000 IE-FC-DIP-CI/3A/2ST/1D9
- MPN: 2003370000
- PPN: WDM-2003370000
CAD
$103.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

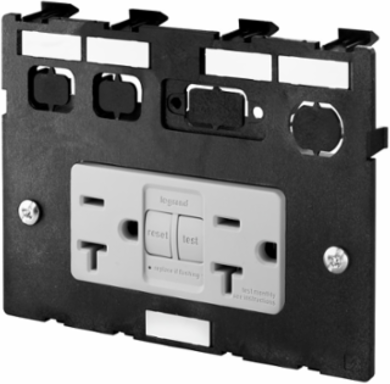

FrontCom, Insert plate, unshielded, 1 x GFCI, 1 x fuse, 2x Data, 1x Signal
Documentation & Downloads
Specifications
Electrical Properties
| Operating voltage | 125 V AC |
|---|
General Data
| Material | Polycarbonate PC |
|---|
| Product type | Insert plate, unshielded |
|---|
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E223801 |
| ROHS | Conform |
|---|

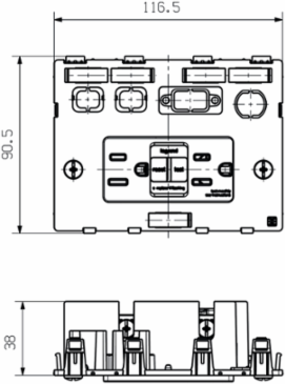

Dimensions And Weights
| Length | 90.5 mm |
|---|---|
| Width | 116.5 mm |
| Height | 23 mm |
| Net weight | 141.78 g |
| Length (inches) | 3.563 inch |
|---|---|
| Width (inches) | 4.587 inch |
| Height (inches) | 0.906 inch |
Standards
| Certificate No. (cURus) | E223801 |
|---|
Clampable Conductors
| Conductor connection cross-section, extremely flexible with wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Conductor connection cross-section, rigid | 1.5 ... 4 mm² |
| Type of connection | Screw connection |
| Conductor connection cross-section, flexible with wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Stripping length | 9 mm |
Classifications
| ETIM 6.0 | EC000456 |
|---|---|
| eClass 9.0 | 27-18-28-06 |
| eClass 10.0 | 27-18-28-06 |
| ETIM 7.0 | EC000456 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-16-23-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 66 °C |
|---|---|
| Operating temperature | -35 °C...66 °C |
| Operating temperature, min. | -35 °C |
|---|
