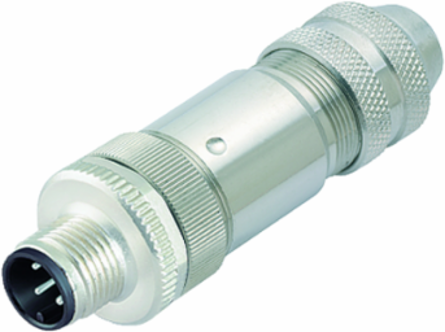

Weidmuller 1507700000 SAISM-5/8S-M12 5P A-ZF
- MPN: 1507700000
- PPN: WDM-1507700000
CAD
$29.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plugs prefabricated to customer spec., M12, pin, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 32 g
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable glands
- PG 9
- Connection cross-section, max.
- 0.75 mm²
- Contact surface
- Gold-plated
- Number of poles
- 5
- Rated current
- 4 A
- Shield connection
- Yes
- Threaded ring material
- Diecast zinc
Cable diameter, min.6 mm
CodingA
Connection cross-section, min.0.14 mm²
Housing main materialCuZn
Pollution severity3
Rated voltage125 V
Temperature range of housing-40 … +85 ° C
Type of connectionTension-clamp connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
