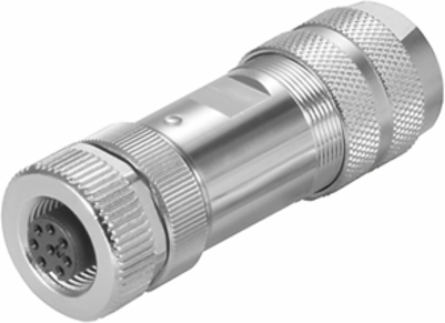

Weidmuller 2590900000 SAIBM-5/8S-M12 5P A-ZF
- MPN: 2590900000
- PPN: WDM-2590900000
CAD
$25.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 0.047 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 0.5 mm² |
| Contact surface | Gold-plated |
| Number of poles | 5 |
| Rated current | 4 A |
| Shield connection | Yes |
| Threaded ring material | Diecast zinc |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | A |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | CuZn |
| Pollution severity | 3 |
| Rated voltage | 125 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Tension-clamp connection |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
