Weidmuller 1450520000 IE-FC-SFP-KEY2
- MPN: 1450520000
- PPN: WDM-1450520000
CAD
$79.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

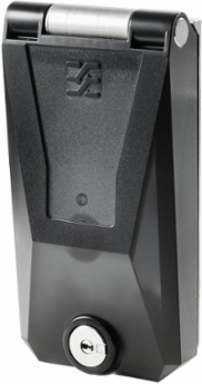

FrontCom, Single frame, Plastic cover, Lockable with key
Documentation & Downloads
Specifications
General Data
- Material cover
- Polycarbonate PC
- Product type
- Single frame, Plastic cover, Lockable with key
Material frameZinc diecast
Protection degreeIP65, in closed state
Approvals
- Approvals
- DNV GL
ROHSConform

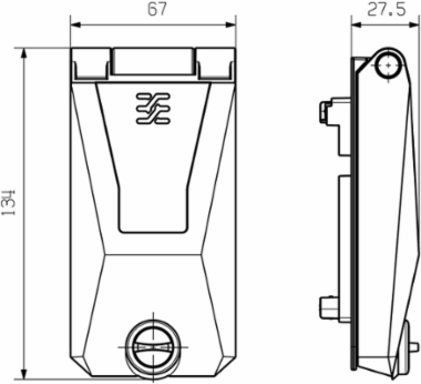

Dimensions And Weights
- Length
- 134 mm
- Width
- 67 mm
- Height
- 27.5 mm
- Wall thickness, max.
- 5 mm
- Net weight
- 332 g

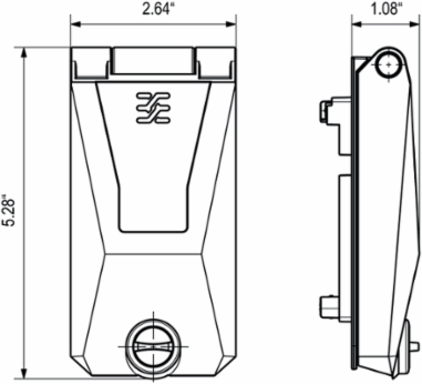

Length (inches)5.276 inch
Width (inches)2.638 inch
Height (inches)1.083 inch
Wall thickness, min.1 mm
Standards
- Certificate No. (GERMLLOYD)
- 13866-15
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-02
- eClass 10.0
- 27-18-27-02
ETIM 7.0EC001031
eClass 9.127-18-27-90
UNSPSC31-16-23-03
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
