Weidmuller 1318150000 IE-CD-V14MSCRJ-MM-C-MA
- MPN: 1318150000
- PPN: WDM-1318150000
CAD
$307.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

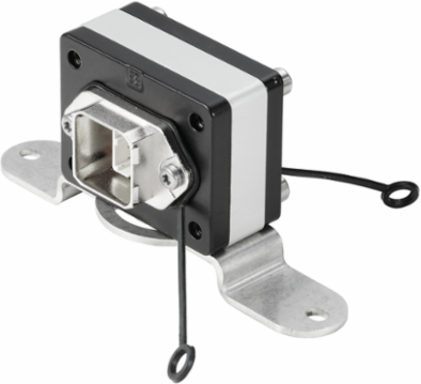

Junction box, FreeCon, SCRJ, Plug-in connector, IP65
Documentation & Downloads
Specifications
General Data
| Housing main material | Aluminium profile, Cover: die-cast zinc, nickel plated |
|---|
| Protection degree | IP65 |
|---|
Approvals
| Approvals | CULUS |
|---|
| UL File Number Search | E316369 |
|---|
Dimensions And Weights
| Net weight | 224.56 g |
|---|
Standards
| Connector standard | IEC 61076-3-117 Var. 14, IEC 61754-24 |
|---|
| Certificate no. (cULus) | E316369 |
|---|
Technical Specifications - Fibre-Optic Coupler
| Connection 1 | SCRJ |
|---|---|
| Fibre type | Multimode, POF |
| Plugging cycles (fibre-optic coupling) | ≥ 500 |
| Connection 2 | SCRJ |
|---|---|
| Housing base material (fibre-optic coupling) | PA |
| Seal material (fibre-optic coupling) | NBR |
Optical Properties Of Fibre-Optic Coupling
| Insertion attenuation (fibre-optic coupling) | < 0.2 dB |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-03-92 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
