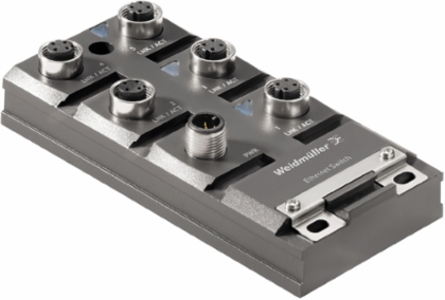

Weidmuller 1504420000 IE-SW-IP67T-5M12
- MPN: 1504420000
- PPN: WDM-1504420000
CAD
$929.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, unmanaged, Fast Ethernet, Number of ports: 5 * M12 D coded, IP67 encapsulated, -40 °C...75 °C
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Mtbf
| MTBF | 370,224 hrs |
|---|
| Database | Telcordia (Bellcore), GB |
|---|
Dimensions And Weights
| Width | 60 mm |
|---|---|
| Height | 125 mm |
| Depth | 29.6 mm |
| Net weight | 270 g |
| Width (inches) | 2.362 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 1.165 inch |
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Guarantee
| Time interval | 5 years |
|---|
Classifications
| ETIM 6.0 | EC000734 |
|---|---|
| eClass 9.0 | 19-17-01-06 |
| eClass 10.0 | 19-17-04-02 |
| ETIM 7.0 | EC000734 |
|---|---|
| eClass 9.1 | 19-17-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Housing main material | Plastic |
|---|---|
| Type of mounting | Wall mounting, when screwed in |
| Protection degree | IP67 encapsulated |
|---|
Emc Conformity And Approvals
| EMC standards | EN 55032, EN 55024, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
|---|---|
| Security | UL508 |
| Vibration | according to IEC 60068-2-6 |
| Free fall | According to IEC 60068-2-32 |
|---|---|
| Shock | according to IEC 60068-2-27 |
Interfaces
| LED indicator | PWR, LNK/ACT |
|---|---|
| Number of ports | 5 * M12 D coded |
| M12-Ports | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X connection, D-coded, 4-pole |
|---|
Power Supply
| Connection type | 1 x M12 socket, A-coded, Pin |
|---|---|
| Overload current protection | 1.1 A |
| Supply voltage, max. | 45 V DC |
| Voltage supply | 24 V DC, 18 to 30 V AC, 47 to 63 Hz |
| Current consumption | 0.12 A bei 24V DC |
|---|---|
| Reverse polarity protection | Available |
| Supply voltage, min. | 12 V DC |
Technology
| Data switching | Store and Forward |
|---|---|
| Standard | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control |
| Flow control | IEEE 802.3x flow control, Back pressure flow control |
|---|
