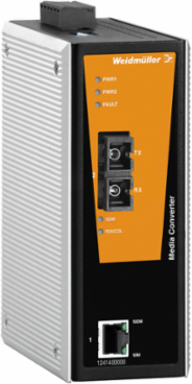

Weidmuller 1286880000 Fast Ethernet Media Converter, 4.134 Inch Length, 1x RJ45 and 1 SC Multi-mode Port
- MPN: 1286880000
- PPN: WDM-1286880000
CAD
$844.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Media converter, Fast Ethernet, Number of ports: 1x RJ45, 1 * SC Multi-mode, IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Fibre Optic 100Basefx
- Link budget multimode
- 12 dB
- Min. TX multi-mode
- -20 dBm
- System reserve multi-mode
- -6 dBm
- Wavelength multi-mode
- 1,300 nm
Max. TX multi-mode-10 dBm
Receive sensitivity multi-mode-32 dBm
Typical distances multi-mode5 km (50/125 μm, 800 MHz*km fibre optic cable), 4 km (62.5/125 μm, 500 MHz*km fibre optic cable)
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT
- UL File Number Search
- E141197
ROHSConform
Mtbf
- MTBF
- 401,000 hrs
DatabaseMIL-HDBK-217F, GB 25°C
Dimensions And Weights
- Length
- 105 mm
- Width
- 53.6 mm
- Height
- 135 mm
- Depth
- 105 mm
- Net weight
- 765 g
Length (inches)4.134 inch
Width (inches)2.11 inch
Height (inches)5.315 inch
Depth (inches)4.134 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.75 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC001467
- eClass 9.0
- 19-17-01-14
- eClass 10.0
- 19-17-01-32
ETIM 7.0EC001467
eClass 9.119-17-01-14
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Technical Data
- Housing main material
- metal
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V/m, IEC 61000-4-8, IEC 61000-4-11
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
SecurityUL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
Shockaccording to IEC 60068-2-27
Interfaces
- Alarm contact
- 1 relay output with a current capacity of 1 A at 24 V DC
- Fibre-optic ports
- 100BaseFX ports (SC connector), Multimode
- Number of ports
- 1x RJ45, 1 * SC Multi-mode
DIP switch100BaseFX full-/half-duplex mode, Port surveillance
LED indicatorPWR1, PWR2, FAULT, 10/100M (TP-Port), 100M (fibre-optic port)., FDX/COL (Fibre port)
RJ45 ports10/100BaseT(X)
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Overload current protection
- 1.1 A
- Supply voltage, max.
- 45 V DC
- Voltage supply
- 24 V DC, 2 redundant inputs
Current consumption0.16 A at 24 V
Reverse polarity protectionAvailable
Supply voltage, min.12 V DC
Technology
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
