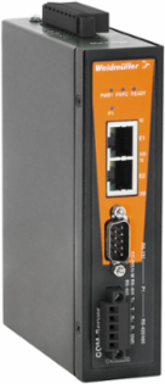

Weidmuller 1242080000 IE-CS-2TX-1RS232/485
- MPN: 1242080000
- PPN: WDM-1242080000
CAD
$869.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Serial / Ethernet converter, 2x RJ45, 1x DB9 for RS-232, 1x terminal block for RS-422/485, IP30, 0 °C...60 °C
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, CULUSEX, DEMKOATEX, EAC, KOREANCERT |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Software
| Configuration options | Web console, serial console, Telnet console, Windows utility |
|---|---|
| Windows Real COM driver | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64 |
| Network protocol | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, IGMP |
|---|
Mtbf
| MTBF | 262,805 hrs |
|---|
| Database | Telcordia (Bellcore), GB |
|---|
Dimensions And Weights
| Width | 36 mm |
|---|---|
| Height | 140 mm |
| Depth | 105 mm |
| Net weight | 475 g |
| Width (inches) | 1.417 inch |
|---|---|
| Height (inches) | 5.512 inch |
| Depth (inches) | 4.134 inch |
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Guarantee
| Time interval | 5 years |
|---|
Reliability
| Alarm function | Built-in buzzer and RTC |
|---|
| Auto restart on failure | Built-in Watchdog Timer (WDT) |
|---|
Classifications
| ETIM 6.0 | EC000310 |
|---|
| ETIM 7.0 | EC000310 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Housing main material | metal |
|---|---|
| Type of mounting | Rail |
| Protection degree | IP30 |
|---|
Emc Conformity And Approvals
| EMC standards | FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), level 4, EN 61000-4-5 (Surge), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8, EN 61000-4-11 |
|---|---|
| Free fall | According to IEC 60068-2-32 |
| Shock | according to IEC 60068-2-27 |
| Explosive risk zone | UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T3 Gc |
|---|---|
| Security | UL508 |
| Vibration | according to IEC 60068-2-6 |
Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|---|---|
| RS-485 2-wire | Data+, Data-, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
|---|---|
| RS-485 4-wire | TxD+, TxD-, RxD+, RxD-, GND |
Interfaces
| Ethernet cable protection | 1 kV (Level 2) surge protection |
|---|---|
| Interface standards | RS-232/422/485 |
| RJ45 ports | 10/100BaseT(X), Auto MDI/MDI-X port |
| Serial cable protection | 15 kV ESD protection for all signals, 1 kV (Level 2) surge protection |
| Serial ports | 1 |
| Ethernet ports | 2 |
|---|---|
| Magnetic isolation protection | 1.5 kV built-in |
| RS-485 data direction control | ADDC® (automatic data direction control) |
| Serial port | DB9 RS-232, Terminal block for RS-422/485 |
Power Supply
| Connection type | 1 removable 8-pole terminal block |
|---|---|
| Supply voltage, max. | 48 V DC |
| Voltage supply | 24 V DC, 2 redundant inputs |
| Current consumption | 0.220 A at 12 V DC, 0.110 A at 24 V DC |
|---|---|
| Supply voltage, min. | 12 V DC |
Technology
| Flow control | RTS/CTS and DTR/DSR (RS-232), XON/XOFF |
|---|
Serial Communication Parameters
| Baud rate | 50 bit/s to 921.6 kbit/s |
|---|---|
| Flow control | RTS/CTS and DTR/DSR (RS-232), XON/XOFF |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8 |
|---|---|
| Parity | none, straight, odd, Space, Mark |
