Weidmuller 1966290000 IE-OM-V05M-K21-2S
- MPN: 1966290000
- PPN: WDM-1966290000
CAD
$309.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

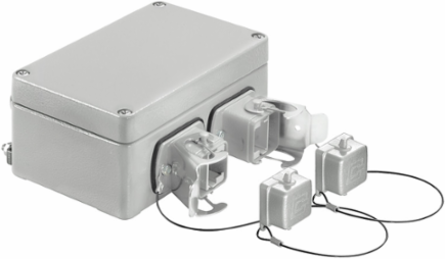

Junction box, IP67, Variant 5, 2 ports, straight
Documentation & Downloads
Specifications
General Data
| Colour | grey |
|---|---|
| Plugging cycles | 750 |
| Sheath diameter, max. | 10 mm |
| Type of mounting | Floor-mounted, Wall mounting |
| Housing main material | AL-Si 12 |
|---|---|
| Protection degree | IP67 |
| Sheath diameter, min. | 5 mm |
Approvals
| Approvals | GOSTME25 |
|---|

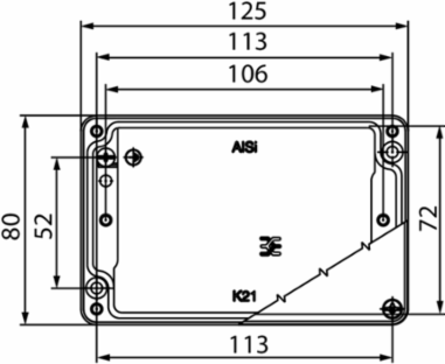

Dimensions And Weights
| Length | 125 mm |
|---|---|
| Width | 136 mm |
| Depth | 57 mm |
| Net weight | 643 g |
| Length (inches) | 4.921 inch |
|---|---|
| Width (inches) | 5.354 inch |
| Depth (inches) | 2.244 inch |
Standards
| Connector standard | IEC 61076-3-106 Var. 5 |
|---|
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 30-21-18-18 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
