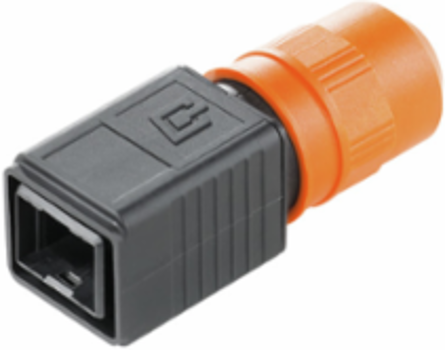

Weidmuller 1962520000 IE-PH-V04P
- MPN: 1962520000
- PPN: WDM-1962520000
CAD
$27.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Empty enclosure, Plug housing, Variant 4 to IEC 61076-3-106, IP67
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Housing main material | PA UL 94 V0 |
| Protection degree | IP67 |
| Sheath diameter, min. | 5 mm |
| Configuration | Plug housing with labelling/marking holder: 9*11 mm; suitable for holding RJ45 and fibre-optic inserts |
|---|---|
| Plugging cycles | 750 |
| Sheath diameter, max. | 10 mm |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 12.8 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 4 |
|---|
| Certificate no. (cULus) | E316369 |
|---|
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-02 |
| eClass 10.0 | 27-18-27-02 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-02 |
| UNSPSC | 30-21-18-17 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
