Weidmuller 1324010000 IE-PCB-M12X-S-180
- MPN: 1324010000
- PPN: WDM-1324010000
CAD
$62.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

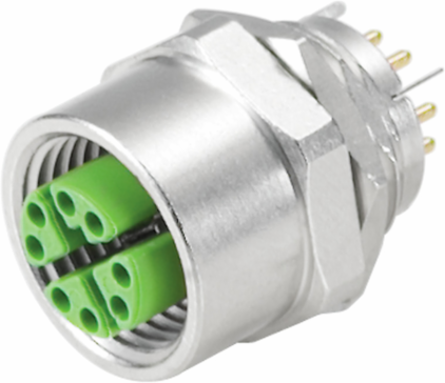

PCB plug-in connector, M12, Solder connection, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67, when screwed in, Reflow compatible, 1-part
Documentation & Downloads
Specifications
Electrical Properties
| Current-carrying capacity at 50 °C | 0.5 A @ 40 °C |
|---|---|
| Rated voltage | 48 V |
| Insulation strength | 100 MΩ |
|---|
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|
Dimensions And Weights

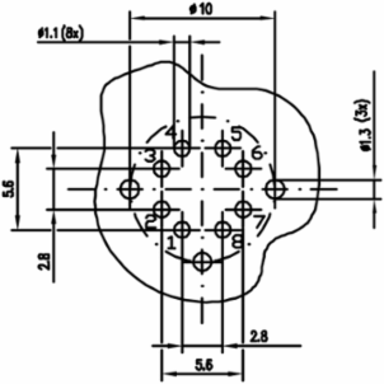

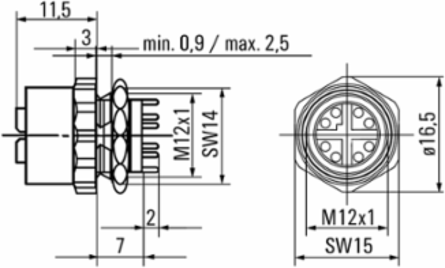

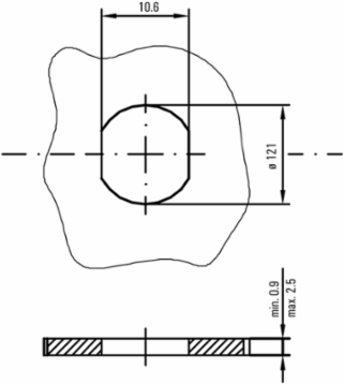

| Wall thickness, max. | 2.5 mm |
|---|---|
| Net weight | 11.75 g |
| Wall thickness, min. | 0.9 mm |
|---|
Standards
| Connector standard | IEC 61076-2-109 |
|---|
| Certificate no. (cULus) | E316369 |
|---|
General Info

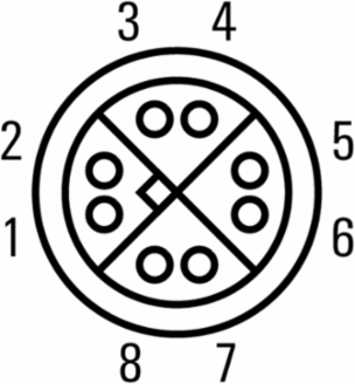

| Connection 1 | M12 |
|---|---|
| Configuration | Reflow compatible |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Contact material | CuZn |
| Shielding material | CuSn |
| Protection degree | IP67, when screwed in |
| Connection 2 | Solder connection |
|---|---|
| Housing main material | CuZn |
| Connection thread | M12 |
| Contact surface | Gold over nickel |
| Shielding | 360° all-round enclosure |
| Plugging cycles | ≥ 100 |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 °C |
|---|---|
| Operating temperature | -40 °C...85 °C |
| Operating temperature, min. | -40 °C |
|---|
