Weidmuller 1450800000 IE-FCI-PWS-US
- MPN: 1450800000
- PPN: WDM-1450800000
CAD
$29.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

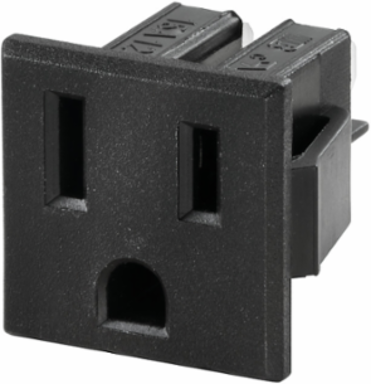

FrontCom, Insert Power US, Type B, Socket connector, US
Documentation & Downloads
Specifications
Electrical Properties
| Contact resistance | ≤ 30 mΩ |
|---|
| Insulation strength | ≥ 100 MΩ @ 500 V DC |
|---|
General Data
| Connector face | Type B |
|---|---|
| Protection degree | IP20 |
| Insert type | Insert Power US |
|---|
Approvals
| Approvals | DNV GL, UR |
|---|---|
| UL File Number Search | E479233 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 10 g |
|---|
| Net weight | 10.76 g |
|---|
Standards
| Certificate No. (GERMLLOYD) | 13866-15 |
|---|
| Certificate No. (UR) | E479233 |
|---|
Clampable Conductors
| Type of connection | Solder connection, FS 4.8 x 0.8 |
|---|
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-18-90-90 |
| UNSPSC | 31-16-23-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Contact resistance | ≤ 30 mΩ |
|---|---|
| Insulation strength | ≥ 100 MΩ @ 500 V DC |
| Rated voltage (AC) | 125 V |
| Housing main material | PA 66 |
|---|---|
| Rated current | 15 A |
Temperatures
| Operating temperature, max. | 85 °C |
|---|---|
| Operating temperature | -20 °C...85 °C |
| Operating temperature, min. | -20 °C |
|---|
