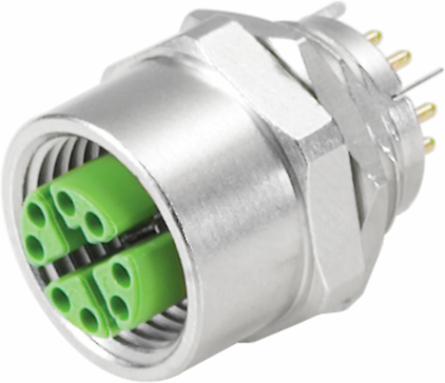

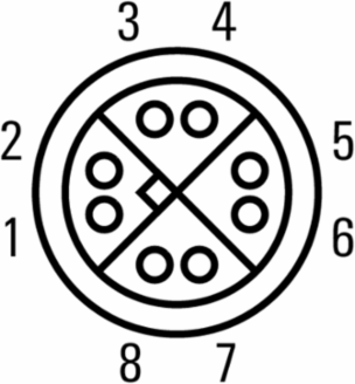

Weidmuller 1393080000 IE-PCB2-M12X-S-180
- MPN: 1393080000
- PPN: WDM-1393080000
CAD
$64.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, M12, Solder connection, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67, when screwed in, Reflow compatible, 2-part
Documentation & Downloads
Specifications
Electrical Properties
- Current-carrying capacity at 50 °C
- 0.5 A @ 40 °C
- Rated voltage
- 48 V
Insulation strength100 MΩ
Approvals
- Approvals
- CULUS
- UL File Number Search
- E316369
ROHSConform

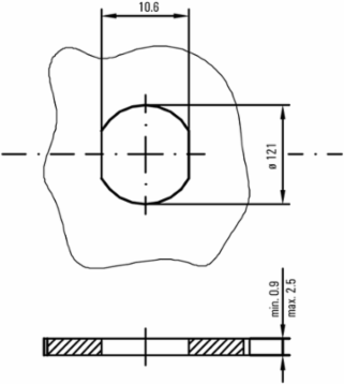

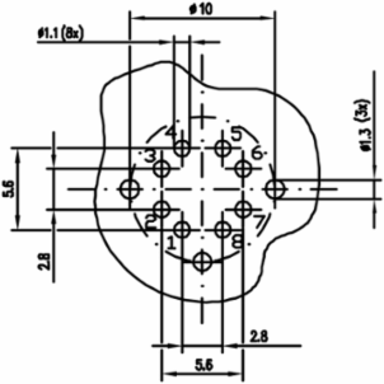

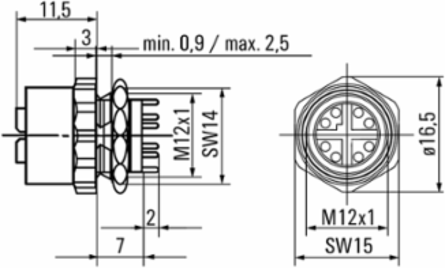

Dimensions And Weights
- Wall thickness, max.
- 2.5 mm
- Net weight
- 11.8 g
Wall thickness, min.0.9 mm
Standards
- Connector standard
- IEC 61076-2-109
Certificate no. (cULus)E316369
General Info
- Connection 1
- M12
- Configuration
- Reflow compatible
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Contact material
- CuZn
- Shielding material
- CuSn
- Protection degree
- IP67, when screwed in
Connection 2Solder connection
Housing main materialCuZn
Connection threadM12
Contact surfaceGold over nickel
Shielding360° all-round enclosure
Plugging cycles≥ 100
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature
- -40 °C...85 °C
Operating temperature, min.-40 °C
