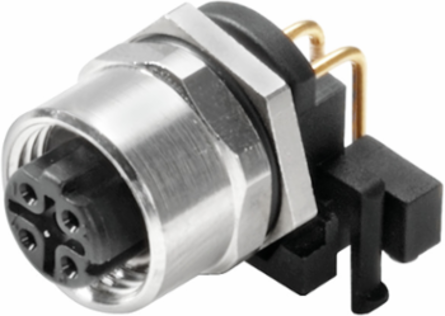

Weidmuller 1393470000 IE-M12-PCBCE-PANEL-A
- MPN: 1393470000
- PPN: WDM-1393470000
CAD
$34.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB connection element M12, M12, Cat.5 (ISO/IEC 11801), IP65 in acc. with DIN EN 60529
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 14.3 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
General Info
| Connection 2 | M12 |
|---|---|
| Configuration | Reflow compatible |
| Housing main material | CuZn, Polyamide, nickel-plated |
| Connection thread | M12 |
| Description of article | Connecting element, clip-on |
|---|---|
| Number of poles | 4 |
| Category | Cat.5 (ISO/IEC 11801) |
| Protection degree | IP65 in acc. with DIN EN 60529 |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 °C |
|---|---|
| Operating temperature | -40 °C...85 °C |
| Operating temperature, min. | -40 °C |
|---|
