Spec sheet
Description

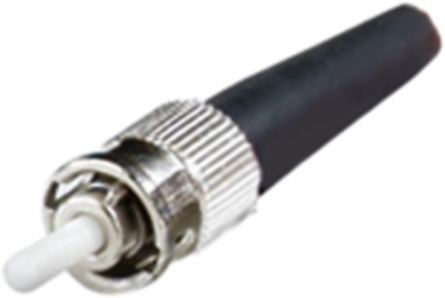

FO connector, ST plug, Singlemode, IP20
Documentation & Downloads
Specifications
General Data
- Bending protection sleeve material
- TPE
- Connection 1
- ST
- Crimp barrel material
- Copper, nickel-plated
- Dust protection cap material
- TPE
- Housing main material
- Zinc diecast
- Plugging cycles
- 1000
- Return loss (attenuation)
- ≥ 40 dB
- Sheath diameter, min.
- 2.6 mm
Cable pull-out force, min.100 N
Connection 2gluing, crimping, polishing
Description of articleST plug, Singlemode
Fibre typeGOF, Singlemode
Insertion loss≤ 0.5 dB
Protection degreeIP20
Sheath diameter, max.3.2 mm
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 6 g
Standards
- Connector standard
- IEC 61754-2
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
Temperatures
- Operating temperature, max.
- 80 °C
- Storage temperature, max.
- 90 °C
- Operating temperature
- -20 °C...80 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...90 °C
