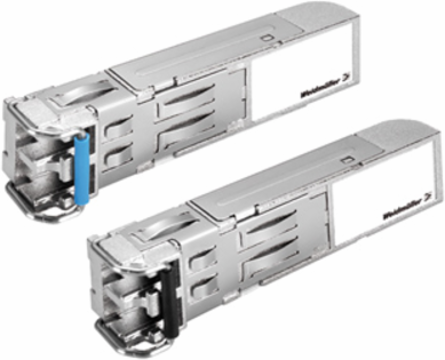

Weidmuller 1241510000 IE-SFP-1GLXLC
- MPN: 1241510000
- PPN: WDM-1241510000
CAD
$859.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SFP Transceiver, 0 °C...60 °C, Gigabit-Ethernet, Singlemode, LC connectors, 10 km
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus, DNV GL, EAC |
|---|---|
| UL File Number Search | E230683 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 35 g |
|---|
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Guarantee
| Time interval | 3 years |
|---|
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-92 |
| eClass 10.0 | 27-44-03-92 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-44-02-92 |
Technical Data
| Type of mounting | Insert in SFP slot |
|---|
Emc Conformity And Approvals
| Security | UL, TÜV |
|---|
| Ship use | DNV-GL |
|---|
Fibre Optic Gigabit Ethernet
| Link budget Gigabit Ethernet | 10.5 dB |
|---|---|
| Min. TX Gigabit Ethernet | -9.5 dBm |
| System reserve Gigabit Ethernet | -3 dBm |
| Wave length Gigabit Ethernet | 1,310 nm |
| Max. TX Gigabit Ethernet | -3 dBm |
|---|---|
| Receive sensitivity Gigabit Ethernet | -20 dBm |
| Typical distances Gigabit Ethernet | 10 km (9/125 μm, single-mode fibre optic cable) |
Interfaces
| Ethernet ports | 1 |
|---|
| Plug-in connector | Duplex-LC |
|---|
Power Supply
| Voltage supply | 3.3 V (via Ethernet switch) |
|---|
