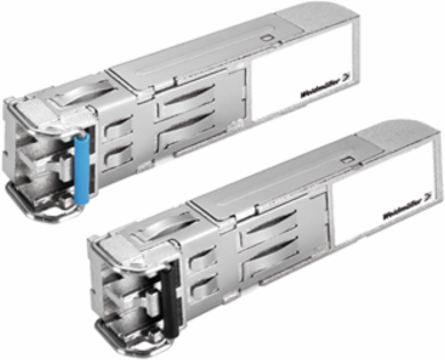

Weidmuller 1286710000 SFP Transceiver 2 km, Gigabit-Ethernet, -40 to 85 C, Duplex-LC
- MPN: 1286710000
- PPN: WDM-1286710000
CAD
$965.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SFP Transceiver, -40 °C...85 °C, Gigabit-Ethernet, Multimode, LC connectors, 2 km
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, cURus, DNV GL
- UL File Number Search
- E230683
ROHSConform
Dimensions And Weights
- Net weight
- 25 g
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.85 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 3 years
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC001121
eClass 9.127-44-02-92
Technical Data
- Type of mounting
- Insert in SFP slot
Emc Conformity And Approvals
- Security
- UL, TÜV
Ship useDNV-GL
Fibre Optic Gigabit Ethernet
- Link budget Gigabit Ethernet
- 10 dB
- Min. TX Gigabit Ethernet
- -9 dBm
- System reserve Gigabit Ethernet
- -3 dBm
- Wave length Gigabit Ethernet
- 1,310 nm
Max. TX Gigabit Ethernet-1 dBm
Receive sensitivity Gigabit Ethernet-19 dBm
Typical distances Gigabit Ethernet2 km (62.5/125 μm, 750 MHz * km @ 1310 nm multi-mode fibre optic cable)
Interfaces
- Ethernet ports
- 1
Plug-in connectorDuplex-LC
Power Supply
- Voltage supply
- 3.3 V (via Ethernet switch)
