Weidmuller 1504340000 IE-SW-BL05T-1GT-4GTPOE

MPN: 1504340000
PPN: WDM-1504340000

$2166.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

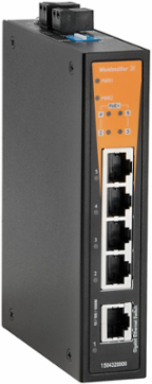

Network switch, unmanaged PoE, Gigabit Ethernet, Number of ports: 4 * RJ45 10/100/1000BaseT(X) PoE+, 1 * RJ45 10/100/1000BaseT(X), IP30, -40 °C...75 °C

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, EAC, KOREANCERT
UL File Number Search	E141197

ROHS	Conform

Mtbf

MTBF	1,257,910 hrs

Database	Telcordia (Bellcore), GB

Dimensions And Weights

Width	29 mm
Height	135 mm
Depth	105 mm
Net weight	360 g

Width (inches)	1.142 inch
Height (inches)	5.315 inch
Depth (inches)	4.134 inch

Environmental Conditions

Humidity	5...95 %, no condensation
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C

Operating temperature, max.	75 °C
Storage temperature, max.	85 °C

Classifications

ETIM 6.0	EC000734
eClass 9.0	19-17-01-06
eClass 10.0	19-17-04-02

ETIM 7.0	EC000734
eClass 9.1	19-17-01-06

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Switch Characteristics

Jumbo frame support	up to 10 KB
Packet buffer size	1,024 Kbit

MAC table size	8 K

Technical Data

Housing main material	Aluminium
Type of mounting	DIN rail, Panel (with optional mounting kit)

Protection degree	IP30

Emc Conformity And Approvals

EMC standards	FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8
Shock	according to IEC 60068-2-27

Security	UL508
Vibration	according to IEC 60068-2-6

Interfaces

DIP switch	Activate/deactivate IEEE 802.3az energy-efficient Ethernet, Enable/disable jumbo frame support, Broadcast storm protection enable/disable, Switching between standard PoE (up to 30 W) and High Power PoE (up to 36 W)
Note 1	When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
Number of ports	4 * RJ45 10/100/1000BaseT(X) PoE+, 1 * RJ45 10/100/1000BaseT(X)
RJ45 ports	10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

LED indicator	PWR1, PWR2, 10/100/1000M (TP-Port), PoE
Note 2	The SFP slot can only be used with Weidmüller SFP transceivers. Third-party SFP transceivers are not accepted by the switch.
PoE pin assignment	V+, V+, V-, V-, for pins 1, 2, 3, 6 (endspan, MDI alternative A)

Power Supply

Connection type	2 removable 2-pole terminal blocks
Inrush current	17.4 A at 24 V DC (0.1 to 1 ms)
Power consumption	max. 11.73 W (without PD´s consumption)
Reverse polarity protection	Yes
Supply voltage, min.	12 V DC
Voltage supply	12/24/48 V DC, 2 redundant inputs

Current consumption	5,92 A at 12 V DC, 5,65 A at 24 V DC, 3.21 A at 48 V DC
Overload current protection	Yes
Power loss	36.4 BTU/h
Supply voltage, max.	57 V DC
Total PoE power budget	62 W at 12 V DC (12 to 17 V DC), 120 W at 24 V DC (18 to 35 V DC), 144 W at 48 V DC (36 to 57 V DC)

Technology

Data switching	Store and Forward
Standard	IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet
