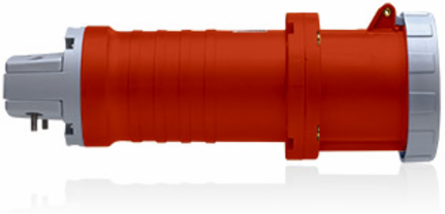

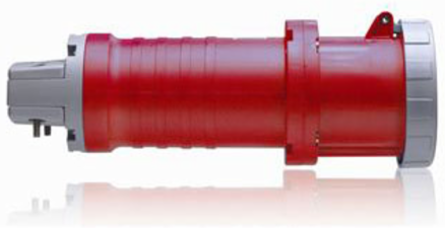

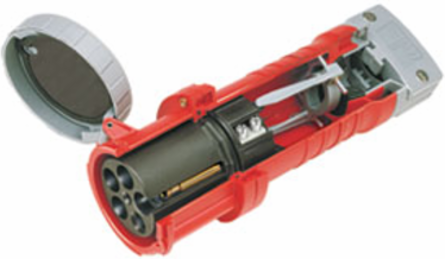

Leviton 5100C7W 100 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - RED

100 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - RED
100 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - RED
100 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - RED
  • MPN: 5100C7W
  • PPN: LEV-5100C7W

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1036.91/ EA

Description

100 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - RED

Specifications

Standards and Certifications

Warranty
2-Year Limited
CE Marking
Per low voltage directives 73/23/EEC, 93/68/EEC
UL Listed
1682 and 1686
CSA CertifiedC22.2 No 182.1
IEC Rating60309-1 and 60309-2

Material Specifications

Internal Cord Clamp Assembly
Thermoplastic
Sleeve Spring
Stainless Steel
Terminal Screws
Stainless Steel
Body Material
Valox 357
Gland Cap
Valox 357
Cover with Arm
Valox 357
Internal Screws
Zinc-plated steel
Cover EyeletNickel-Plated Brass
Arm SpringPerformance Grade Stainless Steel
Grommet/GasketChloroprene
External ScrewsAcid-Proof S/S
External Cord Clamp AssemblyValox 357
Phase and Ground SleevesBrass
Contact CarrierReinforced Nylon

Mechanical Specifications

Minimum Withdrawal Force
20lbs
Cable Secureness
Force: 150lb, Torque: 2.0 ft-lb, Max Disp: <= 3/32"
Crush Test
250lbs for 1 min after -25°C for 6 hrs
Cord Range.950 - 1.875
Impact ResistanceDrop from 30" 8 times after conditioning to -25°C for 6 hrs

Product Features

Color
Red
Configuration
North American
IEC Rating
60309-1 and 60309-2
Device TypeConnector
Country Of OriginPlease Contact Customer Service.

Environmental Specifications

Flammability
Rated V-0 per UL 94
Moisture Resistance
Per UL 1682, immersed for 24 hours in 5cm of 25°C water
Corrosion ResistanceFerrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
IP RatingIP67/IP69K

Electrical Specifications

Amperage
100 A
Dielectric Voltage
3000V for 1 min.
Temperature Rise
Max 30°C temp rise at full-rated current after 50 cycles of OL at 150% rated current
Pole
4
Voltage
277/480 VAC
Wire5
Current InterruptingCertified for current interrupting at full rated current
EnduranceUp to 1000 connects and disconnects, under load, at full rated current and voltage
Insulation Resistance500V for 1 min; >= 5MΩ
Phase3-Phase WYE
