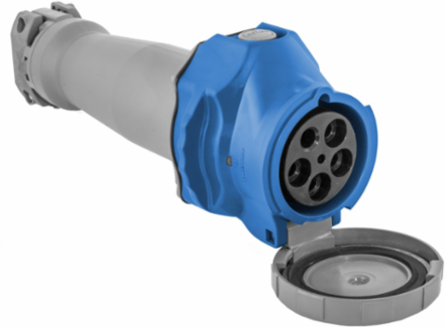

Hubbell Wiring Device-Kellems HBLS5100C9W Watertight IEC Pin and Sleeve Connector, 100 A 3-Phase Y 120/208 VAC, 4-Pole 5-Wire
- MPN: HBLS5100C9W
- UPC: 783585575438
- PPN: HBL-HBLS5100C9W
- UNSPSC: 39121421
CAD
$3950.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve,Connector Switched, 100 A 3 Phase Y 120/208 VAC4-Pole 5-Wire Grounding, NEMA 4X/IP69k
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a disconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- Watertight
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 6.200 in |
| Ingress Protection | TYPE 3R,3RX,4X AND IP68,IP69K |
| Amperage Rating | 100 A |
| Color | Blue |
| Environmental Conditions | Watertight |
| Mounting | Cord Mounted |
| Number of Conductors | 5-Wire Grounding |
| Special Features | Watertight |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact |
| Voltage Rating | 3 Phase Y 120/208 VAC |
| Engineering Drawing 1 Display Text | HBLS5100C9W AutoCAD Drawing |
| General Literature Asset 2 Display Text | IEC Pin & Sleeve Devices |
| Dielectric Strength | Withstand 3000V AC |
| Nema Rating | Non-NEMA |
| Number Of Poles | 4-Pole |
| Phase | Three Phase Y |
| Wire Size | #6AWG - #1AWG |
| Description - Invoice | PS SW CONN, 4P5W,100A 120/208V,4X/69K |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 39.200 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 6 EA |
| NAICS Code | 335931A104 |
| Current / Amperage Rating | 100 A |
|---|---|
| Industry Standard(s) | UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2 |
| Size | Standard |
| Application | Industrial/Commercial |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| NEMA Rating | Non-NEMA |
| Number of Poles | 4-Pole |
| Standard | UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2 |
| Type | Watertight Connector |
| Weight | 6.2 lb. |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices |
| Mounting Type | Cord Mounted |
| Number Of Conductors | 5-Wire Grounding |
| Number Of Wires | 5-Wire |
| Style | IP69k NEMA 4X |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A180 |
| Series | Advantage® Series |
| BOX SIZE | 13.200x16.500x14.600 (in) |
| Carton - Number of Sub Packs | 6 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585575438 |
| Case Weight | 38.550 lb. |
