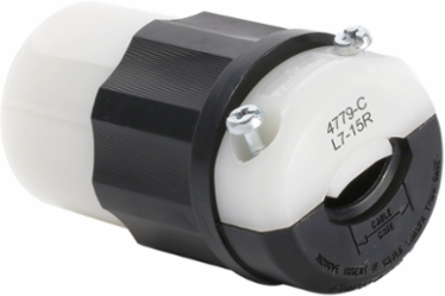

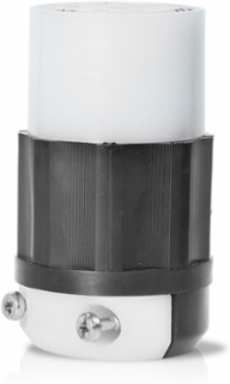

Leviton 4779-C Locking Connector, 15 Amp, 277 Volt, NEMA L7-15R, Impact Modified Nylon
- MPN: 4779-C
- UPC: 078477795804
- PPN: LEV-4779-C
CAD
$60.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

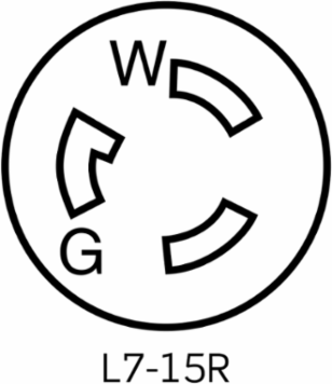

15 Amp, 277 Volt, NEMA L7-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13393 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM Certified | 057 |
| Warranty | Limited Lifetime Warranty Warranty |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Blades/Contacts | Solid Brass |
| Clamp Insert | Nylon |
| Cord-Clamp | Nylon |
| Wire Module | Nylon |
| Back Cover | Thermoplastic |
|---|---|
| Body Material | Impact Modified Nylon |
| Color | Black-White |
| Terminal Screws | Brass |
Mechanical Specifications
| Cord Range | 0.230 to 0.685 |
|---|---|
| Product ID | Ratings and NEMA I.D. permanently marked on device |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Gauge | 18-10 AWG |
| Horsepower Rating | 2 HP |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Torque Range | 10-14 in-lbs |
Product Features
| Brand | Black and White |
|---|
Environmental Specifications
| Environment | Dry |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated HB or better UL94 |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 277 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
