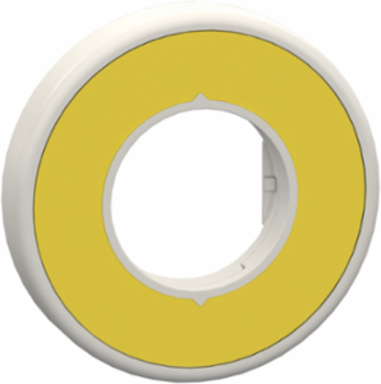

Harmony LED Legend Ring 60 mm Red Unmarked Yellow Label 120V
Harmony LED Legend Ring 60 mm Red Unmarked Yellow Label 120V
Schneider Electric

Schneider Electric ZBY9W2G101 Harmony LED Legend Ring 60 mm Red Unmarked Yellow Label 120V

  • MPN: ZBY9W2G101
  • PPN: SCH-ZBY9W2G101
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $47.60

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia

    Physical Attributes

    Light Source Color
    red

    Important Information Attributes

    Compatibility Code
    XB4, XB5
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Certificate Agency
    UL Listed, CSA
    Carbon Footprint Of The Distribution Phase [A4]
    0.02630453544813227, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.002115302477519544, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    51 kg CO2 eq., 50.64310858715608
    Local Publishable Date
    2026-01-12
    Future Imap
    32.46
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Bulb Base
    integral LED
    Electrical Insulation Class
    class II IEC 61140

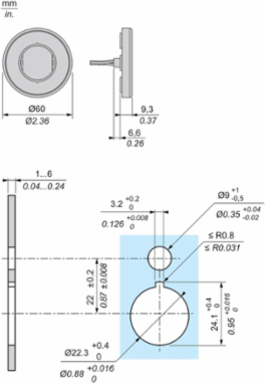

    Label Dimensions
    Ø 60 mm
    Marking
    unmarked yellow
    Operator Additional Information
    with illuminated ring
    Product Or Component Type
    illuminated unmarked legend ring
    Range Of Product
    Harmony
    Resistance To Fast Transients
    2 kV IEC 61000-4-4
    Returnability
    Yes
    Service Life
    100000 h at rated voltage and 25 °C
    Signalling Type
    steady
    Supply Voltage Limits
    100-132 V AC
    Total Lifecycle Carbon Footprint
    51 kg CO2 eq.
    Pep Code
    ENVPEP2506032EN
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    60 mm
    [Ui] Rated Insulation Voltage
    120 V 3)EN/IEC 60947-1
    Cap/Operator Or Lens Colour
    red
    Package Weight(Lbs)
    21.000 g
    Warranty (In Months)
    18
    Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    [Us] Rated Supply Voltage120 V, 110...120 V AC 50/60 Hz
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.043119929873282635
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3663686578379308
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp42.03
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Current Consumption14 mA
    Electromagnetic Emissionclass B IEC 55011
    Light Sourceprotected LED
    Materialplastic
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Shape Of Signaling Unit Headround
    Software Versionv6.3.0.1-4
    Sustainable PackagingNo
    Light Source Colorred
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionIlluminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential, In %3
    Width Nominal9.3 mm
    Accessory / Separate Part Destinationemergency switching off mushroom head push-button
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2506032EN
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint51.08101701279295
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2506032EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    illuminated unmarked legend ring
    Range Of ProductHarmony

    ETIM

    ETIM 8
    EC000624
    ETIM 9EC000624

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    intermediate ring
