Schneider Electric 9001KR9P1RH13 Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO
Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO
Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO
Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO
Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 110...120V, 1 CO
  • MPN: 9001KR9P1RH13
  • UPC: 785901821083
  • PPN: SCH-9001KR9P1RH13

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$369.86/ EA

    Description

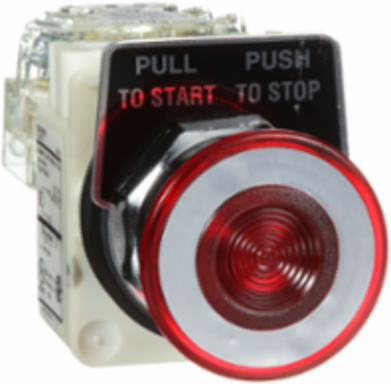

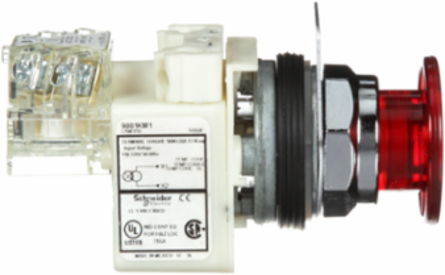

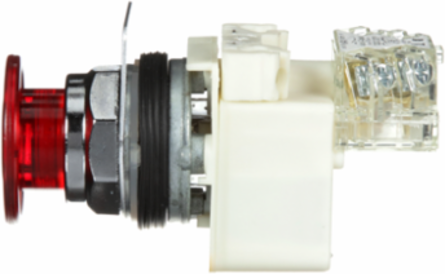

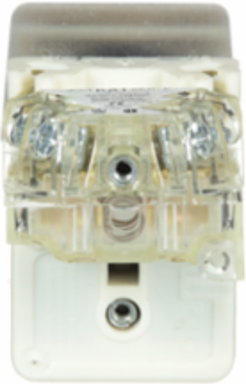

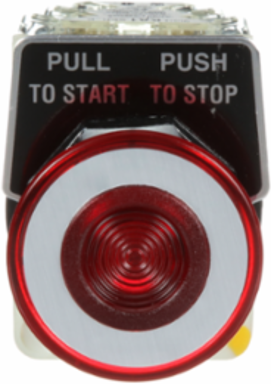

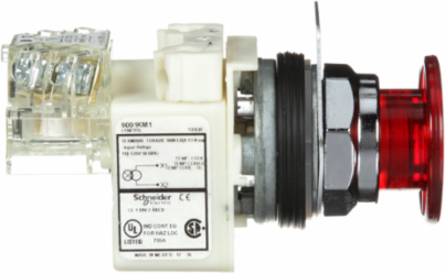

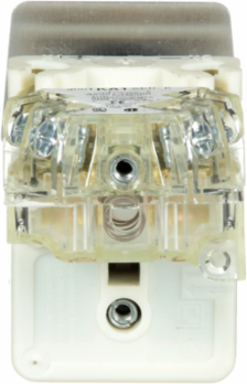

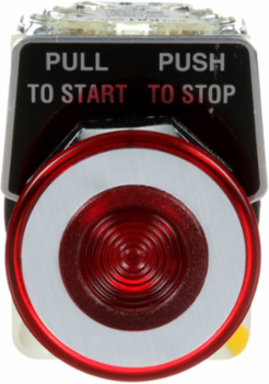

    This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Specifications

    Complementary

    [Us] Rated Supply Voltage
    110...120 V
    Contacts Type And Composition
    1 C/O
    Bezel Material
    metal
    Connections - Terminals
    screw clamp terminals
    Operator Position Information
    2 positions
    Light Block Supply
    via integral transformer
    Operator Profile
    mushroom Ø 41 mm
    Operating Position
    any position
    Size
    30 mm
    Bulb Base
    BA 9s
    [Us] Rated Supply Voltage110...120 V AC
    Light Sourceincandescent
    [Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
    Contact Operationstandard
    Light Sourceincandescent bulb
    Mounting Diameter30 mm
    Type Of Operatorpush-pull
    Cap/Operator Or Lens Colourred
    Supply Frequency50...60 Hz
    Device Presentationcomplete product

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Key Specifications

    Operator Additional Information
    screw-on plastic
    Operator Profile
    red mushroom Ø 41 mm
    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony 9001K
    Type Of Operatorpush-pull
    Device Short NameK

    Environment

    Product Certifications
    UL listed file E42259 CCN NKCR || CE || NEMA || CSA LR 25490 class 3211 03
    Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
