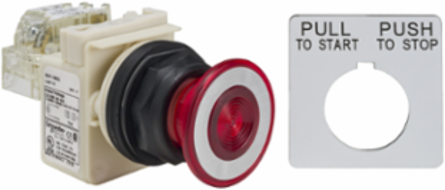

Schneider Electric 9001SKR9P1RH13 Illuminated Push Button, 41mm Red Mushroom, 30mm, 110-120V AC, IP66
- MPN: 9001SKR9P1RH13
- UPC: 785901043102
- PPN: SCH-9001SKR9P1RH13
CAD
$314.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Type Of Operator
- push-pull
- Operator Profile
- red mushroom Ø 41 mm
Light Block Supplyvia integral transformer
Product Or Component Typeilluminated push-button
Device Short Name9001SK
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- Operator Additional Information
- screw-on plastic
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- Operator Profile
- mushroom Ø 41 mm
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- red
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Light Source
- incandescent
- Bezel Material
- plastic
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
- Bulb Base
- BA 9s
[Us] Rated Supply Voltage110...120 V AC 50...60 Hz
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Light Sourceincandescent bulb
Light Block Supplyvia integral transformer
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headround
Net Weight0.226 kg
Size30 mm
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Contacts Type And Composition1 C/O
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Operator Position Information2 positions
Type Of Operatorpush-pull
Tightening Torque0.8-0.8 N.m IEC 60947-1
Supply Frequency50...60 Hz
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP66 NF C 20-010
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Protective Treatment
- TC
StandardsUL 508 || EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-1 || IEC 60947-5-4
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 60536
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120816EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
