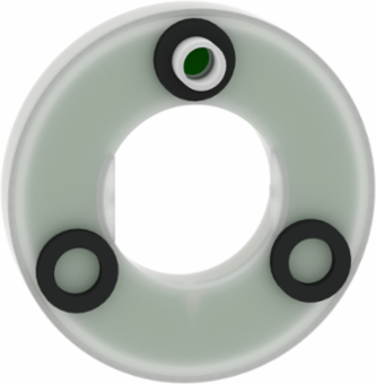

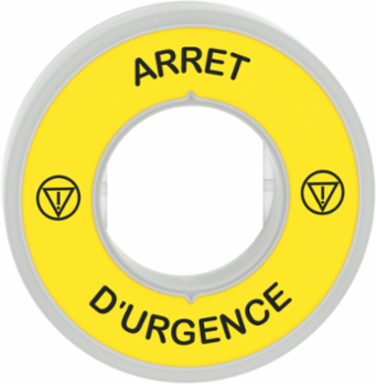

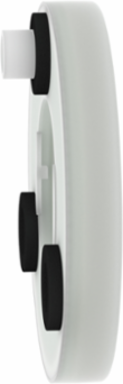

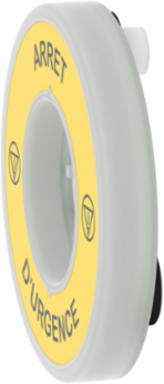

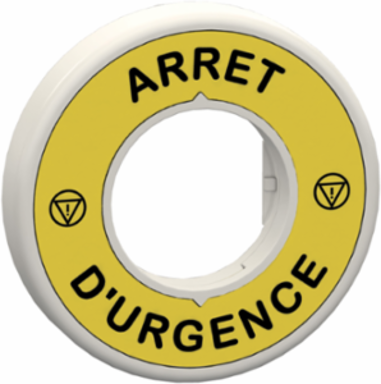

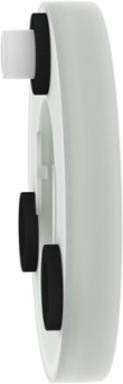

Schneider Electric ZBY9W2B130 Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked ARRET D'URGENCE, 24V AC DC
Schneider Electric ZBY9W2B130 Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked ARRET D'URGENCE, 24V AC DC
- MPN: ZBY9W2B130
- PPN: SCH-ZBY9W2B130
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.57/ EA
Description

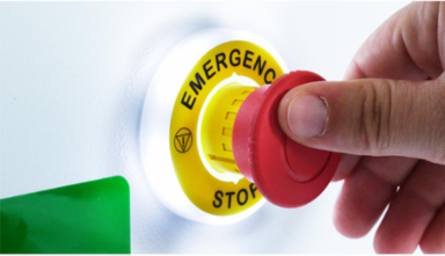

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.
Specifications
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK05 conforming to IEC 62262
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 60 mm
- Marking
- black ARRET D'URGENCE yellow
- Net Weight
- 0.016 kg
- Electrical Insulation Class
- class II IEC 61140
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 24 V 3)IEC 60947-1
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Compatibility Code
- XB4 || XB5
- Accessory / Separate Part Destination
- emergency stop mushroom head push-button
User LanguageFrench
Materialplastic
Current Consumption18 mA
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady

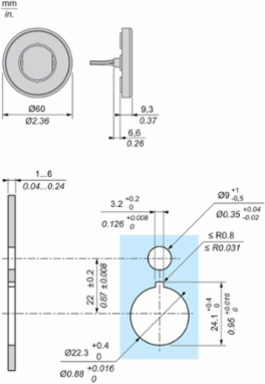

Label DimensionsØ 60 mm
Width9.3 mm
Specifications
- Operator Additional Information
- with illuminated ring
- Light Source
- protected LED
- Shape Of Signaling Unit Head
- round
- Device Presentation
- intermediate ring
- Light Source Colour
- red
- Bulb Base
- integral LED
Range Of ProductHarmony
Product Or Component Typeilluminated marked legend ring
Cap/Operator Or Lens Colourred
Sale Per Indivisible Quantity1
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
