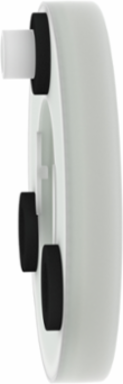

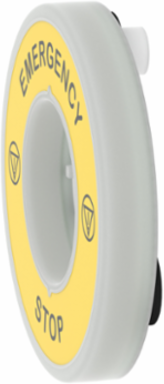

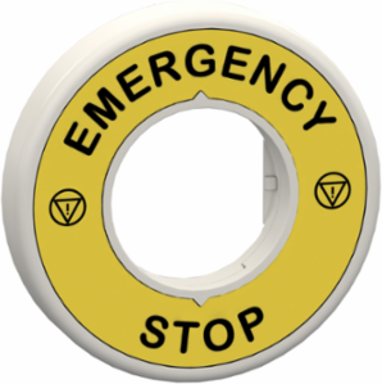

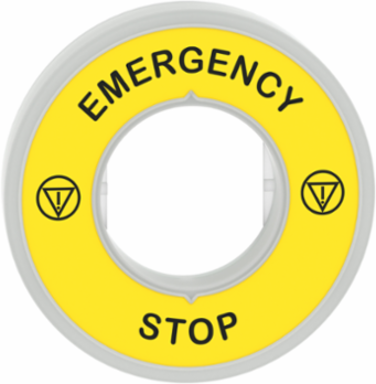

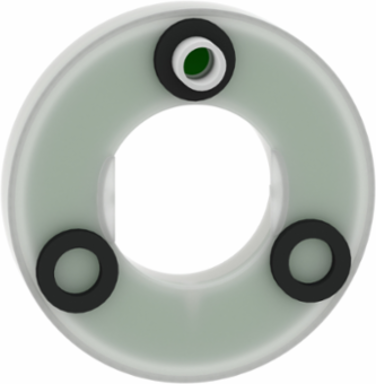

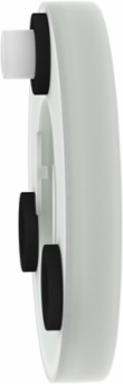

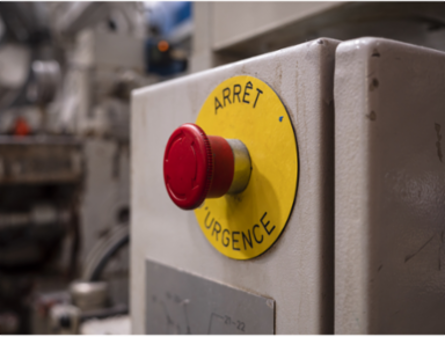

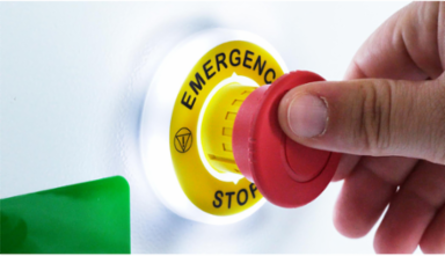

Schneider Electric ZBY9W2B330 Illuminated Legend Ring 60mm Plastic Red LED 24V AC/DC Emergency Stop
- MPN: ZBY9W2B330
- PPN: SCH-ZBY9W2B330
CAD
$29.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Indonesia, United States
Physical Attributes
- Light Source Color
- red, red
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Compatibility Code
- XB4, XB5
- Light Source Color
- red, red
- [Us] Rated Supply Voltage
- 24 V, 24 V AC/DC 50/60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0440213187816692
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.37402731232846614
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bulb Base
- integral LED
- Electrical Insulation Class
- class II IEC 61140
- Label Dimensions
- Ø 60 mm
- Marking
- black EMERGENCY STOP yellow
- Operator Additional Information
- with illuminated ring
- Product Or Component Type
- illuminated marked legend ring
- Range Of Product
- Harmony
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v6.3.0.1-4
- Sustainable Packaging
- No
- User Language
- English
- Marking 1 Marking
- EMERGENCY STOP
- Pep Code
- ENVPEP2506032EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 60 mm
- [Ui] Rated Insulation Voltage
- 24 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 21.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]0.02685441149298871, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0021595212458877214, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 13.022513636697278
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Light Sourceprotected LED
Materialplastic
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Supply Voltage Limits19.2-30 V DC21.6-26.4 V AC
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Supply Voltage 20 Supply Voltage24 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionIlluminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %3
Width Nominal9.3 mm
Accessory / Separate Part Destinationemergency stop mushroom head push-button
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2506032EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2506032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint13.469576200546289
Environmental DisclosureENVPEP2506032EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- illuminated marked legend ring
Range Of ProductHarmony
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- intermediate ring
