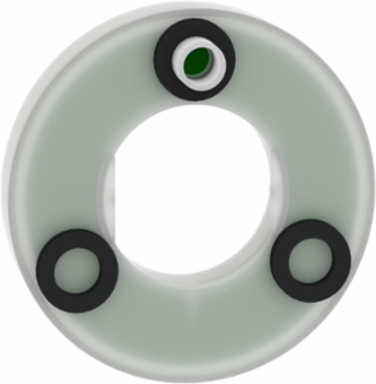

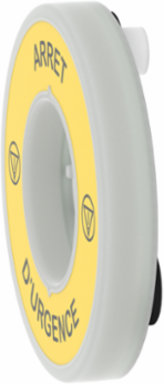

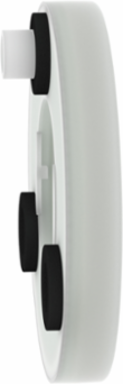

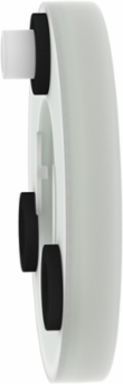

Schneider Electric ZBY9W2M130 Harmony XB5 Illuminated Legend Ring 60mm, Red LED, 230-240V AC
- MPN: ZBY9W2M130
- PPN: SCH-ZBY9W2M130
CAD
$61.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

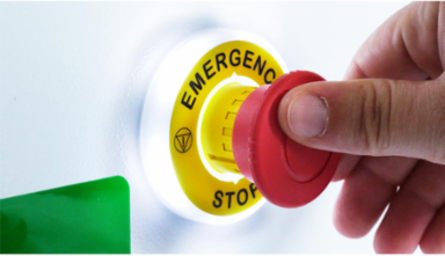

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with illuminated ring
- Light Source
- protected LED
- Shape Of Signaling Unit Head
- round
- Device Presentation
- intermediate ring
- Light Source Colour
- red
- Bulb Base
- integral LED
Range Of ProductHarmony
Product Or Component Typeilluminated marked legend ring
Cap/Operator Or Lens Colourred
Sale Per Indivisible Quantity1
[Us] Rated Supply Voltage230...240 V AC 50/60 Hz
Complementary
- Height
- 60 mm
- Marking

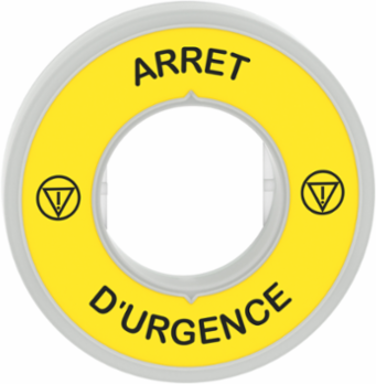

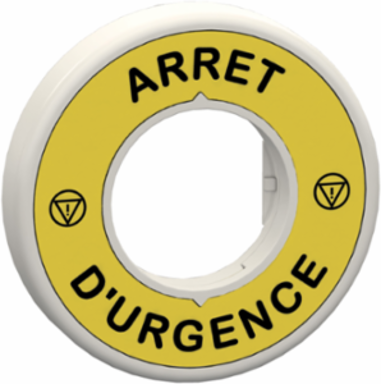

- black ARRET D'URGENCE yellow
- Net Weight
- 0.016 kg
- Electrical Insulation Class
- class II IEC 61140
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Supply Voltage Limits
- 195-264 V AC
- Compatibility Code
- XB4 || XB5
- Accessory / Separate Part Destination
- emergency stop mushroom head push-button
User LanguageFrench
Materialplastic
Current Consumption14 mA
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady

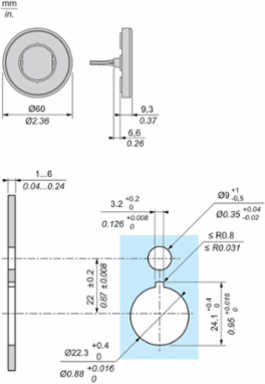

Label DimensionsØ 60 mm
Width9.3 mm
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK05 conforming to IEC 62262
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
