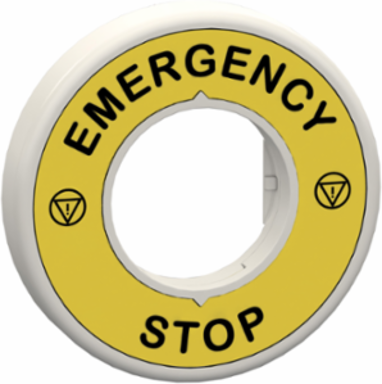

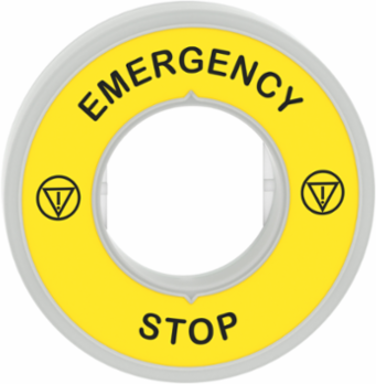

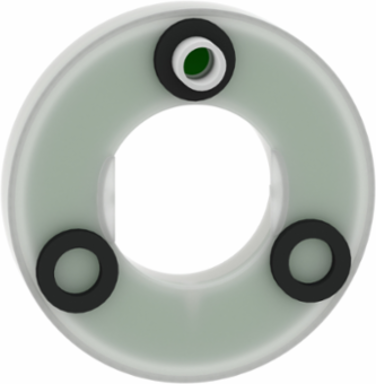

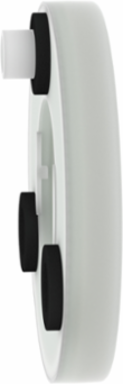

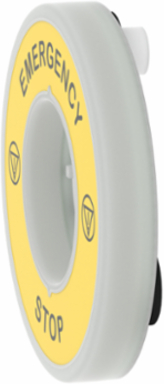

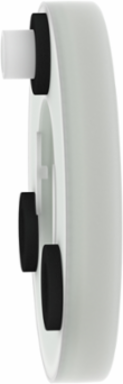

Schneider Electric ZBY9W2G330 Harmony XB5 Illuminated Legend Ring 60mm Red LED Emergency Stop 110-120V AC

MPN: ZBY9W2G330
PPN: SCH-ZBY9W2G330
UNSPSC: 39121534

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$65.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

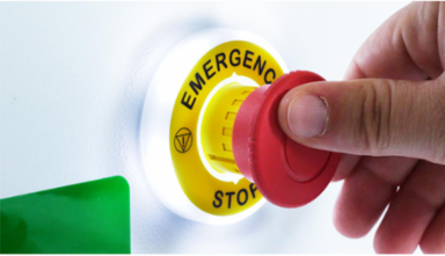

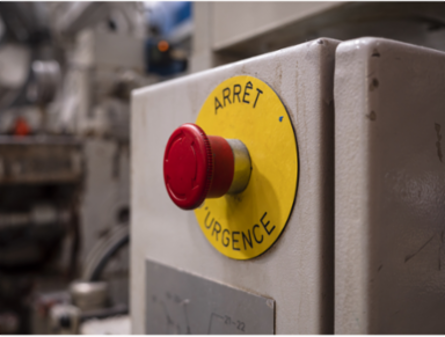

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Weight	20.57 g

Complementary Attributes

Us Rated Supply Voltage	120 V, 110...120 V AC 50/60 Hz

Ui Rated Insulation Voltage	120 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Compatibility Code	XB4, XB5
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.043119929873282635
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.3663686578379308
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Current Consumption	14 mA
Electromagnetic Emission	class B IEC 55011
Light Source	protected LED
Material	plastic
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Returnability	Yes
Service Life	100000 h at rated voltage and 25 °C
Signalling Type	steady
Supply Voltage Limits	100-132 V AC
Total Lifecycle Carbon Footprint	51 kg CO2 eq.
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Database Version	2024-01
Height Nominal	60 mm
Accessory / Separate Part Destination	emergency stop mushroom head push-button
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Carbon Footprint Of The Distribution Phase A4	0.02630453544813227, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.002115302477519544, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	51 kg CO2 eq., 50.64310858715608
Local Publishable Date	2024-07-04
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bulb Base	integral LED
Electrical Insulation Class	class II IEC 61140
Label Dimensions	Ø 60 mm
Marking	black EMERGENCY STOP yellow
Operator Additional Information	with illuminated ring
Product Or Component Type	illuminated marked legend ring
Range Of Product	Harmony
Resistance To Electrostatic Discharge	4 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shape Of Signaling Unit Head	round
Software Version	v6.3.0.1-4
Sustainable Packaging	No
User Language	English
Light Source Color	red
Data Source	extrapolated product
Width Nominal	9.3 mm
Cap/Operator Or Lens Colour	red
Customs Code	3926909989
Functional Unit Description	Illuminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
Functional Unit Unit	unit
Recyclability Potential In %	3

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506032EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	51.08101701279295
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2506032EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
