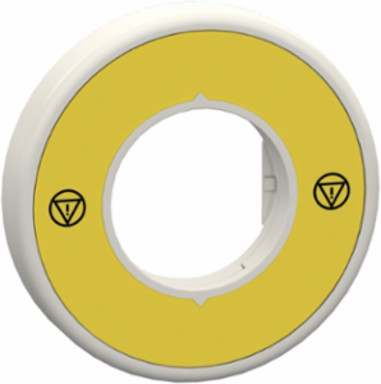

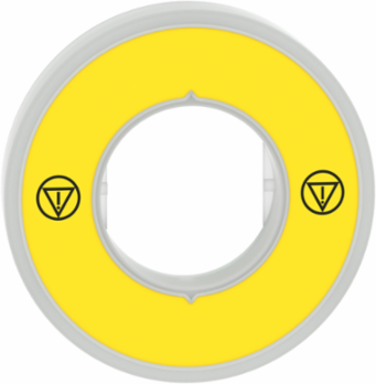

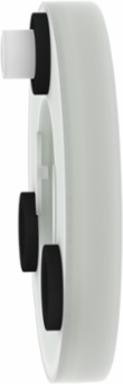

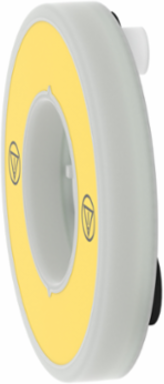

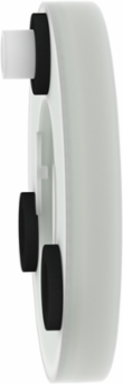

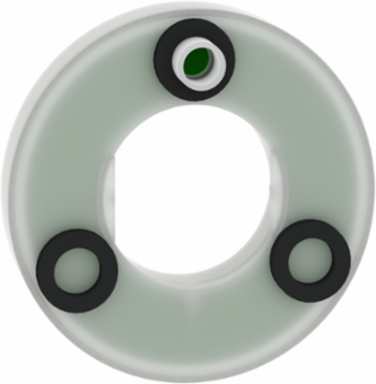

Schneider Electric ZBY9W3B140 Harmony XB5 Illuminated Legend Ring 60mm Plastic 24V AC/DC
- MPN: ZBY9W3B140
- PPN: SCH-ZBY9W3B140
CAD
$42.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

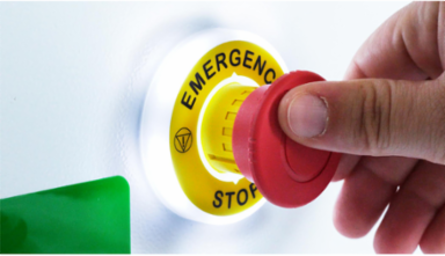

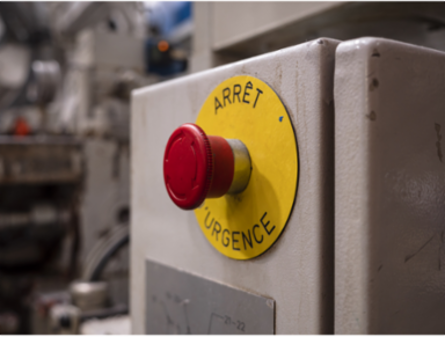

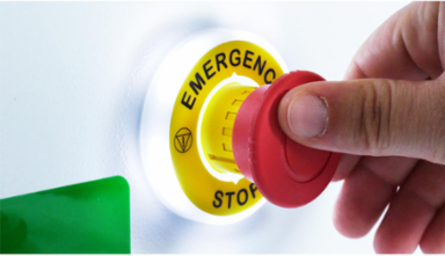

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Light Source Color
- white or red, white or red
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Compatibility Code
- XB4, XB5
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02630453544813227, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.002115302477519544, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 13 kg CO2 eq., 13.022513636697278
- Local Publishable Date
- 2025-11-25
- Future Imap
- 52.1
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bulb Base
- integral LED
- Electrical Insulation Class
- class II IEC 61140
- Label Dimensions
- Ø 60 mm
- Marking
- unmarked yellow
- Operator Additional Information
- with illuminated ring
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v6.3.0.1-4
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Pep Code
- ENVPEP2506032EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 60 mm
- [Ui] Rated Insulation Voltage
- 24 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- 2 colours choice
- Package Weight(Lbs)
- 21.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Supply Voltage Limits19.2-30 V DC, 21.6-26.4 V AC
Light Source Colorwhite or red, white or red
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.043119929873282635
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3663686578379308
Local Data StatusPublishable
Return IndicatorY
Future Msrp67.45
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Light Sourceprotected LED
Materialplastic
Overvoltage Categoryclass II
Product Or Component Typeilluminated unmarked legend ring
Range Of ProductHarmony
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Sustainable PackagingNo
Accessory Destinationemergency stop mushroom head push-button
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionIlluminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %3
Width Nominal9.3 mm
Accessory / Separate Part Destinationemergency stop mushroom head push-button
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506032EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint13.460422062334144
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2506032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated unmarked legend ring
Range Of ProductHarmony
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
