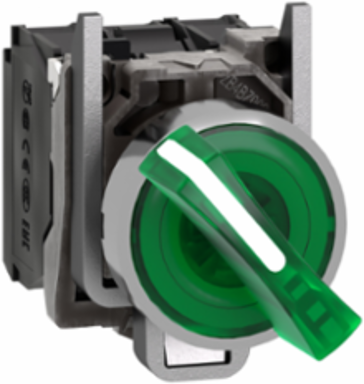

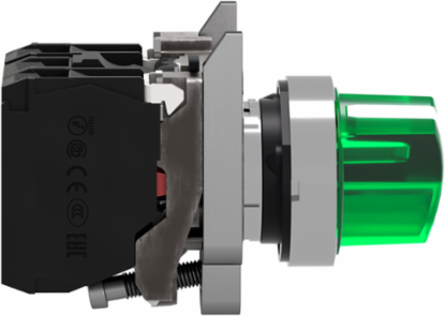

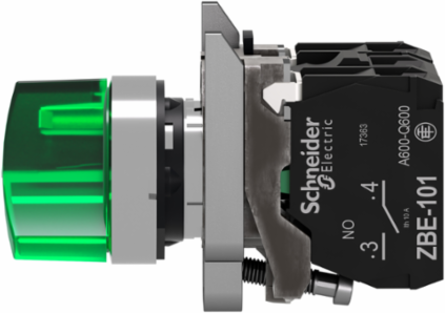

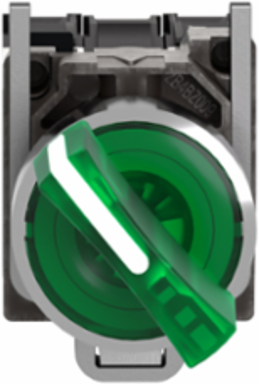

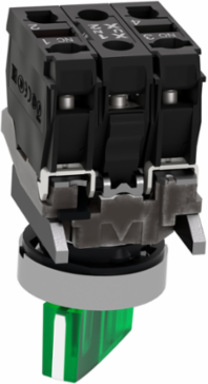

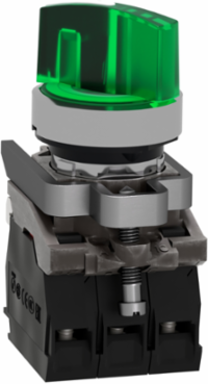

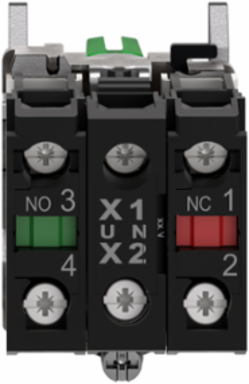

Schneider Electric XB4BK123B5 Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1000000 Cycles
- MPN: XB4BK123B5
- PPN: SCH-XB4BK123B5
CAD
$153.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth68 mm
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- Operator Pos Information
- 2 positions 90°
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01389, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.017557
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 12 kg CO2 eq., 12.313
- Local Publishable Date
- 2026-03-26
- Future Imap
- 58.78
- Stocking Flag
- N
- Manufacturing Carbon Footprint
- 0.7958
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308007EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Bulb Base
- integral LED
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Current Consumption
- 18 mA
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Fixing Collar Material
- zamak
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 1000000 cycles
- Operating Torque
- 0.14 N.m NO changing electrical state
- Operator Profile
- green standard handle
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage
- 24 V
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- stay put
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism with 24V AC universal LED and It has a metal bezel. This switch primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.434 W with use rate of 72% for a period of 10 years and product is adhering to standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 75
- Width Nominal
- 30 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- green
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 0.7958
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 12.954
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 15.111
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 205.62
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -9.8251
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -4.5879
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 14.359
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 13.168
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 15.113
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 55.611
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 286.55
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -5.4158
- Water Use (M3 Eq) End Of Life [C1-c4]
- 0.3997
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cap Operator Or Lens Colorgreen
Certificate AgencyDNV, LROS (Lloyds register of shipping), BV, CSA, UL
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz

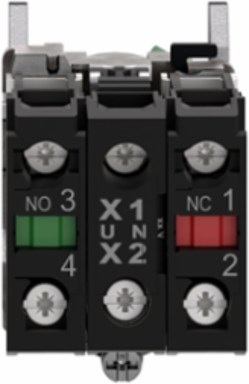

Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.26907, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7958
Local Data StatusPublishable
Return IndicatorY
Future Msrp76.10
Stock Policy2
Use Carbon Footprint12.313
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialchromium plated metal
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB4
Electromagnetic Emissionclass B IEC 55011
Head Typestandard
Light Sourceuniversal LED

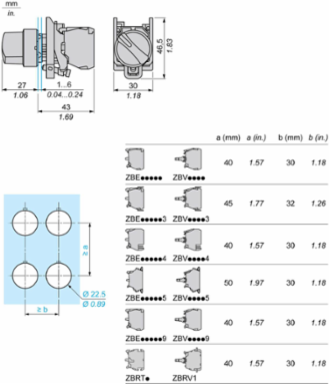

Mounting Diameter22.5 mm
Operator Position Information2 positions 90°
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated selector switch
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2308007EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal47 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)109.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]12.298
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]12.313
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]286.55
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-5.4158
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]142.7
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.6785
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]1.0348
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.8108
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]342.16
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-5.5231
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.363
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]15.111
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]55.611
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 13.409317
- Environmental Disclosure
- ENVPEP2308007EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308007EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
