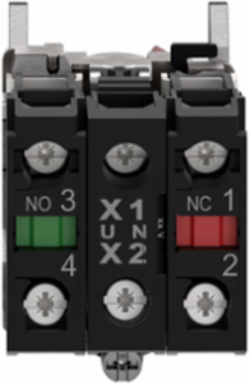

Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC

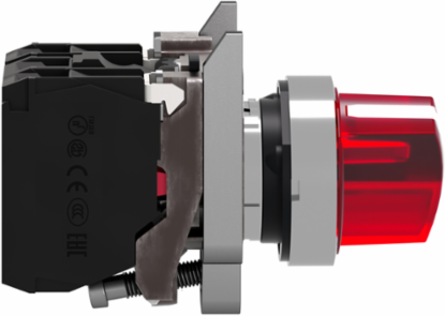

Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC

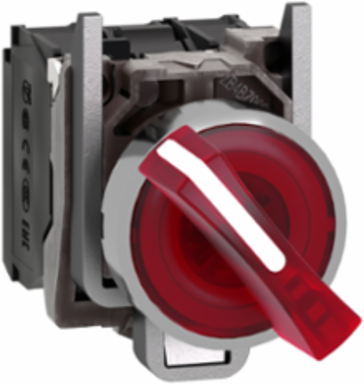

Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC

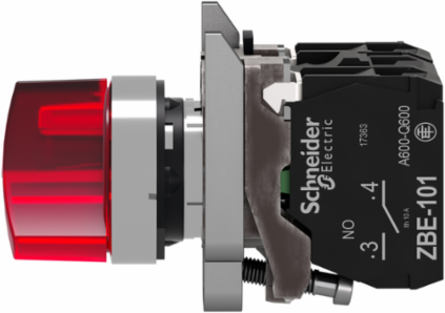

Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC

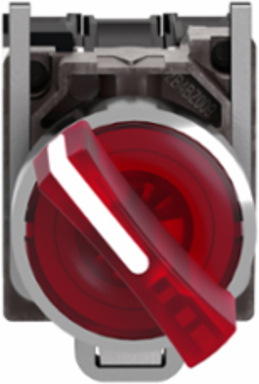

Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC
Schneider Electric

Schneider Electric XB4BK124B5 Harmony XB4 Illuminated Selector Switch, 22mm, 24V AC/DC, 1NO + 1NC

  • MPN: XB4BK124B5
  • PPN: SCH-XB4BK124B5
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $153.08

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4 illuminated modular red selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France
    Depth68 mm

    Physical Attributes

    Cap Operator Or Lens Color
    red

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    no, 0
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Supply Voltage Limits
    19.2-30 V DC, 21.6-26.4 V AC
    Operator Pos Information
    2 positions 90°
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.01389, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.017557
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    91 kg CO2 eq., 91.468
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Manufacturing Carbon Footprint
    0.7958
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2308007EN
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Bulb Base
    integral LED
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO + 1 NC
    Current Consumption
    18 mA
    Electrical Shock Protection Class
    class I conforming to IEC 60536
    Fixing Collar Material
    zamak
    Important Message
    A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    Mechanical Durability
    1000000 cycles
    Operating Torque
    0.14 N.m NO changing electrical state
    Operator Profile
    red standard handle
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Repair Index
    A
    Range Of Product
    Harmony XB4
    Resistance To Fast Transients
    2 kV IEC 61000-4-4
    Returnability
    Yes
    Service Life
    100000 h at rated voltage and 25 °C
    Signalling Type
    steady
    Supply Voltage
    24 V
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Type Of Operator
    stay put
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism with 24V AC universal LED and It has a metal bezel. This switch primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.434 W with use rate of 72% for a period of 10 years and product is adhering to standards IEC 60947-5-1 &amp; UL 508.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential, In %
    75
    Width Nominal
    30 mm
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Cap/Operator Or Lens Colour
    red
    Nbr. Of Units In Pkg.
    1
    Product Repair Index - Dam Document Id
    XB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    91.468
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    15.111
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    205.62
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    2.6785
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    1.0348
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    2541.76
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -5.5231
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
    15.111
    Water Use (M3 Eq) End Of Life [C1-c4]
    0.3997
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Cap Operator Or Lens Colorred
    Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)
    [Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
    Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.26907, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7958
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Use Carbon Footprint91.468
    Weee Product Category5
    Eoli Availability DisplayYes
    Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Bezel Materialchromium plated metal
    Compatibility CodeXB4
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard contacts
    Device Short NameXB4
    Electromagnetic Emissionclass B IEC 55011
    Head Typestandard
    Light Sourceuniversal LED
    Mounting Diameter22.5 mm
    Operator Position Information2 positions 90°
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typeilluminated selector switch
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint93 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep Code"ENVPEP2308007EN"
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal47 mm
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)109.000 g
    Take-backNo
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]0.7958
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]12.954
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-5.4158
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-9.8251
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-4.5879
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]13.168
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]15.113
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.363
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-5.4158

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    92.564317
    Environmental Disclosure
    "ENVPEP2308007EN"
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-10-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2308007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep Code"ENVPEP2308007EN"
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    illuminated selector switch
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC001029
    ETIM 9EC001029

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
