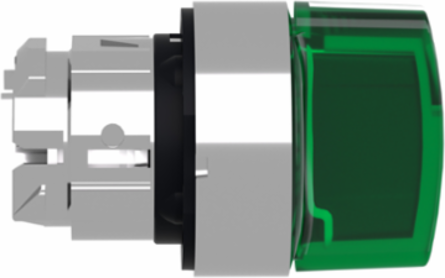

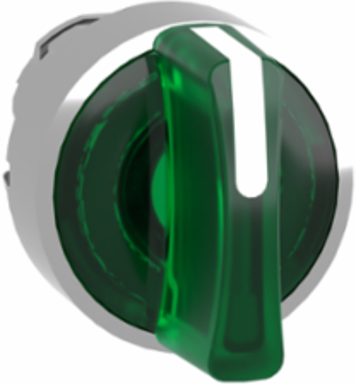

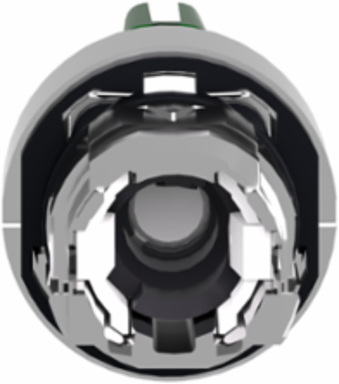

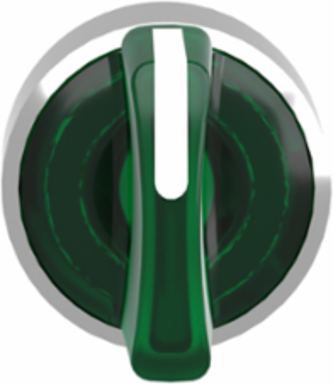

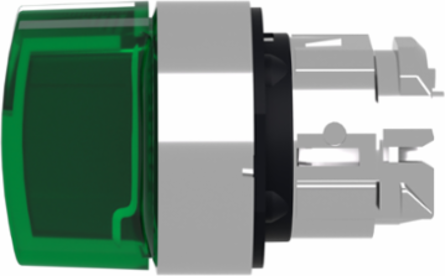

Schneider Electric ZB4BK1533 Harmony XB4 Illuminated Selector Switch Head, 22mm, Green Handle, 3 Positions
- MPN: ZB4BK1533
- PPN: SCH-ZB4BK1533
CAD
$65.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with spring return to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Physical Attributes
- Cap Operator Or Lens Color
- green
- Cad Overall Height
- 29 mm
Cad Overall Depth43 mm
Cad Overall Width29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, M4 4 single and double front mounting integral LED
- Cap Operator Or Lens Color
- green
- Certificate Agency
- BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.09119299566936546
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2697119186593862
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 32.62
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308007EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- ZB4
- Group Of Product
- illum. integral LED
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 500000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Overvoltage Category
- class I conforming to IEC 60536
- Product Or Component Type
- head for illuminated selector switch
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- to centre spring return
- Type Of Operator 3 Return
- to centre
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism with 24V AC universal LED and It has a metal bezel. This switch primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.434 W with use rate of 72% for a period of 10 years and product is adhering to standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 75
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Pos Information3 positions +/- 45°
Carbon Footprint Of The Distribution Phase [A4]0.004707588024854077, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.005950404820184523, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-03-26
Future Imap25.19
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameZB4
Head Typestandard
Main Groupillum select switch
Mounting Diameter22.5 mm
Operator Profilegreen standard handle
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2308007EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)40 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.37156290717379026
- Environmental Disclosure
- ENVPEP2308007EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- universal LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308007EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP2308007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
