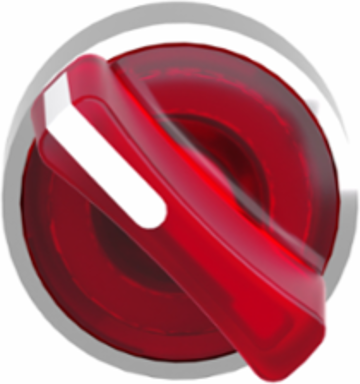

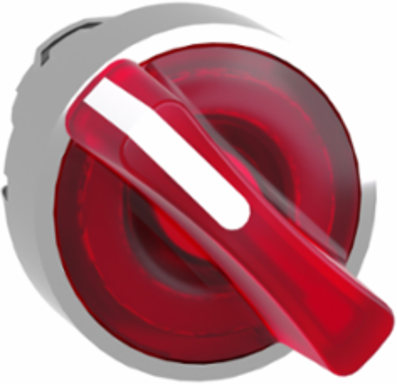

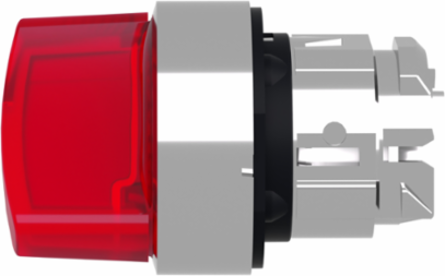

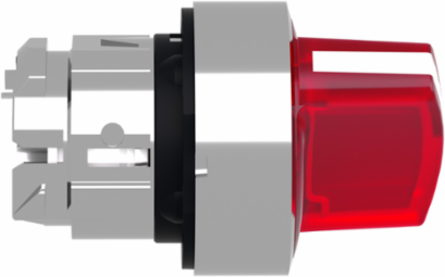

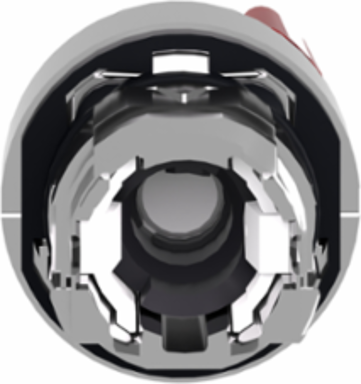

Schneider Electric ZB4BK1243 Harmony XB4 Metal Selector Switch Head, 22mm, Red Handle, IP69K
- MPN: ZB4BK1243
- PPN: SCH-ZB4BK1243
CAD
$60.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, illuminated red selector switch head for universal LED with standard handle has 2 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Cad Overall Depth
- 43 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, M4 4 single and double front mounting integral LED
- Operator Pos Information
- 2 positions 90°
- Carbon Footprint Of The Distribution Phase [A4]
- 0.004707588024854077, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.005950404820184523, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Future Imap
- 17.29
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- ZB4
- Head Type
- standard
- Main Group
- illum select switch
- Mounting Diameter
- 22 mm
- Operator Profile
- red standard handle
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism with 24V AC universal LED and It has a metal bezel. This switch primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.434 W with use rate of 72% for a period of 10 years and product is adhering to standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 75
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyBV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.09119299566936546
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2697119186593862
Local Data StatusPublishable
Return IndicatorY
Future Msrp22.39
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308007EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeZB4
Group Of Productillum. integral LED
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability1000000 cycles
Operator Position Information2 positions 90°
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for illuminated selector switch
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Type Of Operatorstay put
Pep CodeENVPEP2308007EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colourred
Package Weight(Lbs)40.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.37156290717379026
- Environmental Disclosure
- ENVPEP2308007EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- universal LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308007EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP2308007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
