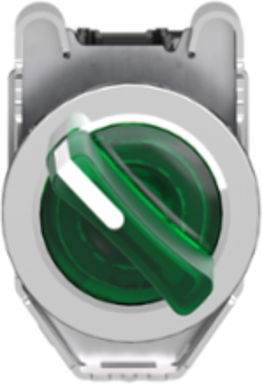

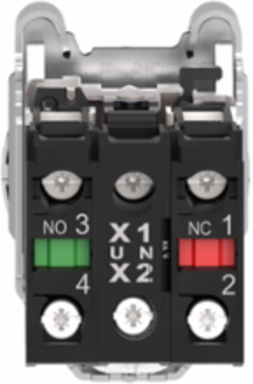

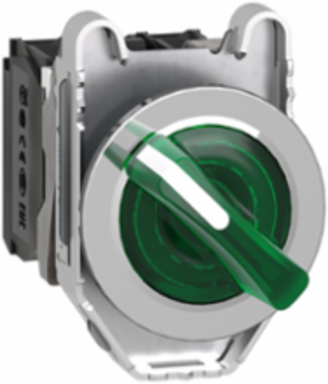

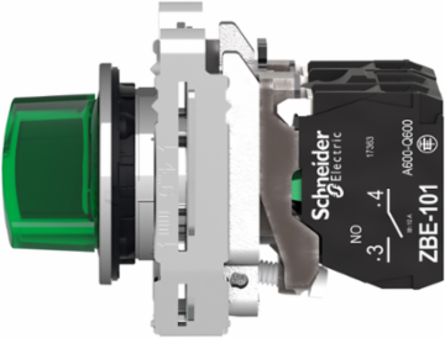

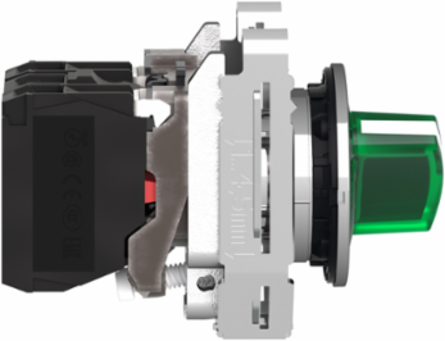

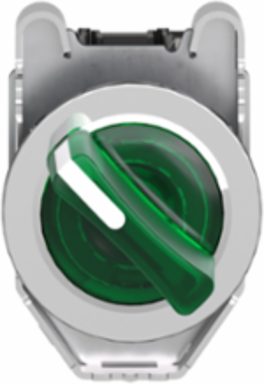

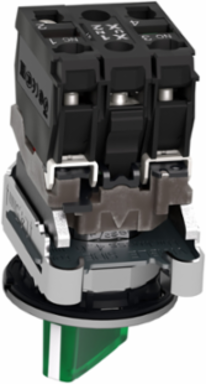

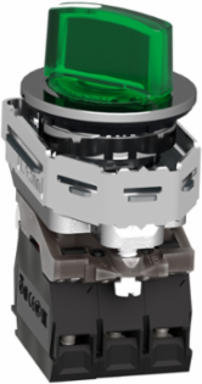

Schneider Electric XB4FK123B5 Harmony XB4 30.5mm Illuminated Selector Switch, 24V AC/DC, IP66 Protection
- MPN: XB4FK123B5
- PPN: SCH-XB4FK123B5
CAD
$131.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony XB4 30.5mm Illuminated Selector Switch, 24V AC/DC, IP66 Protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France
Depth69.5 mm
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Customizable
- no, 1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- Cap Operator Or Lens Color
- green
- Certificate Agency
- UL Listed, CSA, CCC, EAC
- [Us] Rated Supply Voltage
- 24 V, 24 V AC/DC 50/60 Hz
- Terminals Description Iso N°1
- (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.180812653, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0343656562
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 76.29
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308007EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Bulb Base
- integral LED
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Device Short Name
- XB4F
- Electromagnetic Emission
- class B IEC 55011
- Fixing Mode
- by screws 0.8 N.m 0.8...1.2 Nm)
- Head Type
- built-in-flush
- Light Source
- universal LED
- Mounting Diameter
- 30.5 mm
- Operator Position Information
- 2 positions 90°
- Positive Opening
- with NC contact IEC 60947-5-1 appendix K
- Product Or Component Type
- illuminated selector switch
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 36.6 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- green
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 12.369
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 143.35
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 14.425
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 287.87
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 55.867
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 55.867
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Operator Pos Information2 positions 90°
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.0177842214, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0224793071
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]12 kg CO2 eq., 12.369
Local Publishable Date2026-01-12
Future Imap58.93
Stocking FlagY
Use Carbon Footprint12.369
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption18 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Gcr BridgeXB4FKCUST01
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability1000000 cycles
Operating Torque0.14 N.m NO changing electrical state
Operator Profilegreen standard handle
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Supply Voltage24 V
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorstay put
Pep CodeENVPEP2308007EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Height Nominal53 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)136.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]12.355
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]287.87
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]0.2119
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.8191
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]343.74
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]287.87
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308007EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308007EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint13.6244418377
Environmental DisclosureENVPEP2308007EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Overview Attributes
- Device Presentation
- complete product
