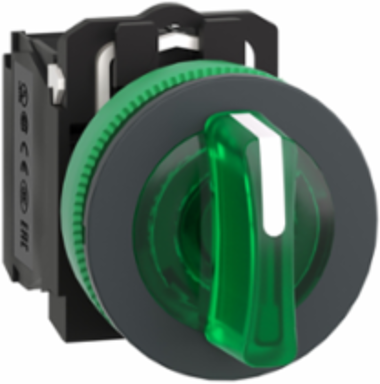

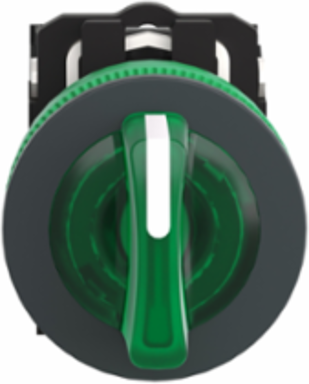

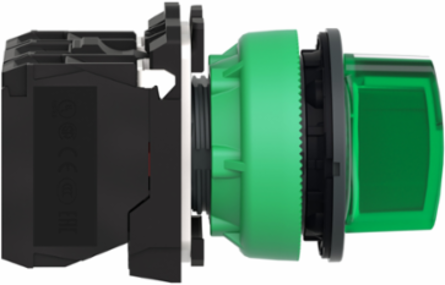

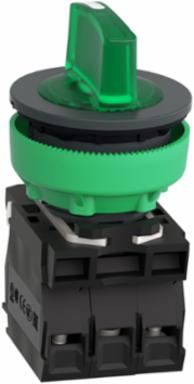

Schneider Electric XB5FK133B5 Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 24V AC DC
Schneider Electric XB5FK133B5 Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 24V AC DC
- MPN: XB5FK133B5
- PPN: SCH-XB5FK133B5
- UNSPSC: 39122217
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$138.62/ EA
Description
Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 24V AC DC
Features
- Universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- green
Conformance Attributes
- Product Certifications
- UL Listed, CSA
StandardsIEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Important Information Attributes
- Customizable
- no, 1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ie Rated Operational Current2
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0091536039, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0180804555
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 16 kg CO2 eq., 16.4681094901
- Connections Terminals3
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- dark grey plastic
- Cap Operator Or Lens Color
- green
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Short Name
- XB5F
- GCR Bridge
- XB5FKCUST01
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 500000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Package Weight Lbs
- 68.039 g
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Short Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 17 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Ith Conventional Free Air Thermal Current2
- 10 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage2
- 6 kV IEC 60947-1
- Medium Desc
- Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 24V AC DC
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 600 V 3)IEC 60947-1
- Us Rated Supply Voltage5
- 24 V AC/DC 50/60 Hz
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Terminals Description ISO N 1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
Us Rated Supply Voltage224 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The End Of Life Phase C1 To C40.1458251885, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.5322271867
Connections Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Ie Rated Operational Current53 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308010EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Bulb Baseintegral LED
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typebuilt-in-flush
Light Sourceuniversal LED
Mounting Diameter30.5 mm
Operator Profilegreen standard handle, unmarked
Positive Openingwith NC contact IEC 60947-5-1 appendix K
Product Or Component Typeilluminated selector switch
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headround
Supply Voltage Limits21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorstay put
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2600 V 3)IEC 60947-1
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Stocking FlagN
Pep CodeENVPEP2308010EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage56 kV IEC 60947-1
Environment Attributes Main
- Take Back
- Nej, No
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- IP Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 17.1733959247
- Environmental Disclosure
- ENVPEP2308010EN
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308010EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308010EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 71 mm
Overview Attributes
- Device Presentation
- complete product
