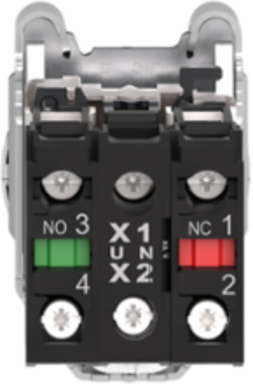

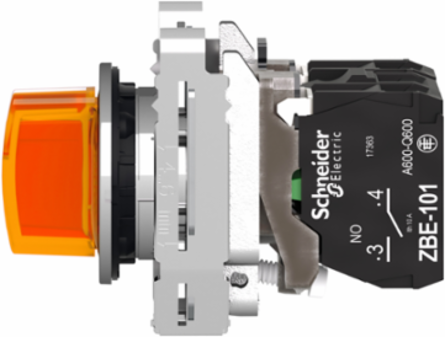

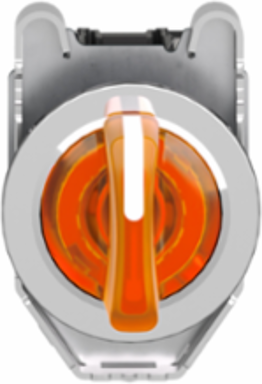

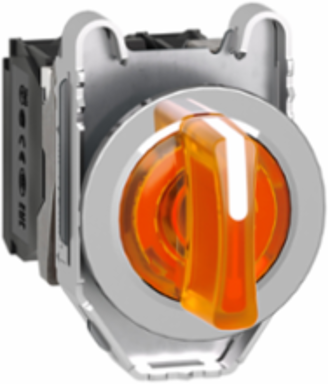

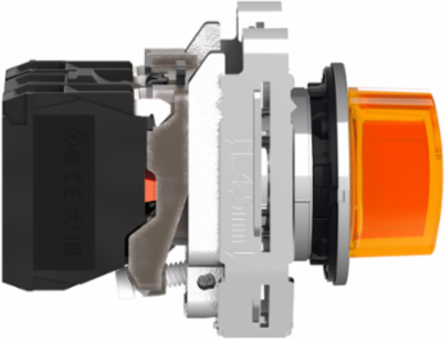

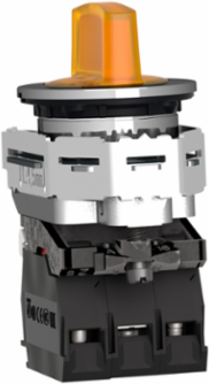

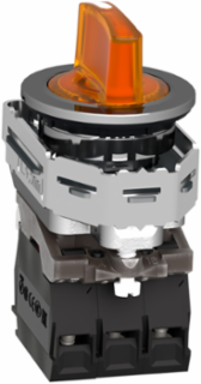

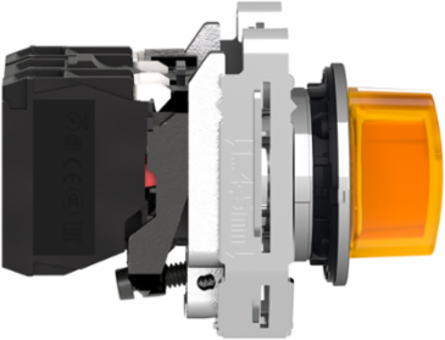

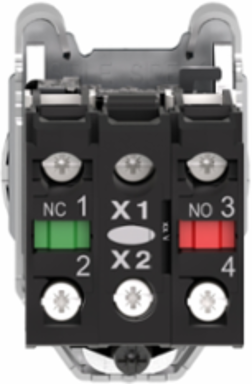

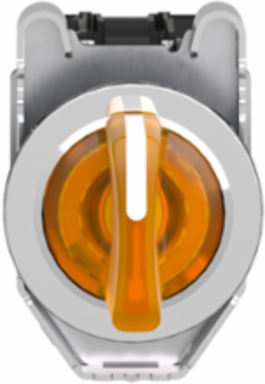

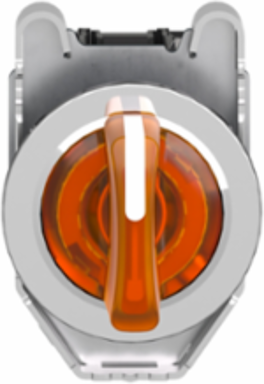

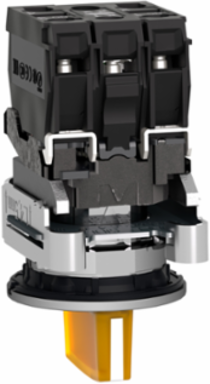

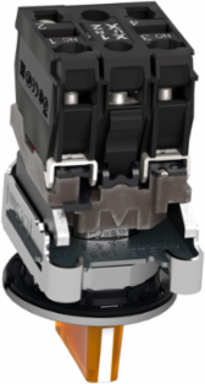

Schneider Electric XB4FK135G5 Harmony XB4 30mm Illuminated Selector Switch, IP66, 110-120V AC
- MPN: XB4FK135G5
- PPN: SCH-XB4FK135G5
CAD
$150.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony XB4 30mm Illuminated Selector Switch, IP66, 110-120V AC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth69.5 mm
Important Information Attributes
- Customizable
- no, 0
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0197457164, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0249586424
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 48 kg CO2 eq., 47.7738449363
- Local Publishable Date
- 2026-01-12
- Future Imap
- 58.93
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308007EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Bulb Base
- integral LED
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Device Short Name
- XB4F
- Electromagnetic Emission
- class B IEC 55011
- Fixing Mode
- by screws 0.8 N.m 0.8...1.2 Nm)
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 500000 cycles
- Operating Torque
- 0.14 N.m NO changing electrical state
- Operator Profile
- orange standard handle
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage Limits
- 100-132 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- stay put
- Pep Code
- ENVPEP2308007EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Height Nominal
- 53 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 151.0 g
- Take-back
- No
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Certificate AgencyUL Listed, CSA, CCC, EAC
[Us] Rated Supply Voltage110...120 V, 110...120 V AC 50/60 Hz
Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.200755225, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.1484501036
Local Data StatusPublishable
Return IndicatorY
Future Msrp76.29
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption14 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Head Typebuilt-in-flush
Light Sourceuniversal LED
Mounting Diameter30.5 mm
Operator Position Information3 positions +/- 45°
Positive Openingwith NC contact IEC 60947-5-1 appendix K
Product Or Component Typeilluminated selector switch
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint49 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal36.6 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourorange
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308007EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308007EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint49.1677546237
Environmental DisclosureENVPEP2308007EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Overview Attributes
- Device Presentation
- complete product
