Schneider Electric XB4FK134G5 Harmony XB4 Illuminated Selector Switch, 30mm, 1 NO + 1 NC, 110...120V AC
Schneider Electric XB4FK134G5 Harmony XB4 Illuminated Selector Switch, 30mm, 1 NO + 1 NC, 110...120V AC
- MPN: XB4FK134G5
- PPN: SCH-XB4FK134G5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$150.31/ EA
Description

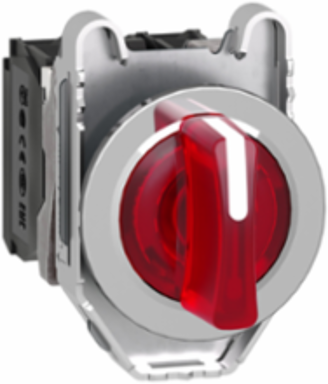

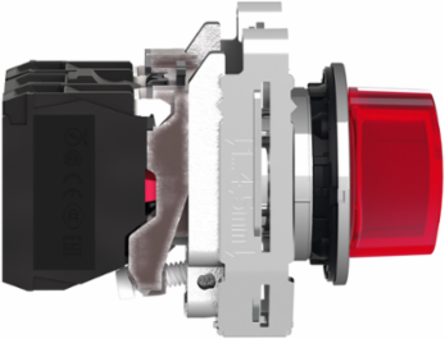

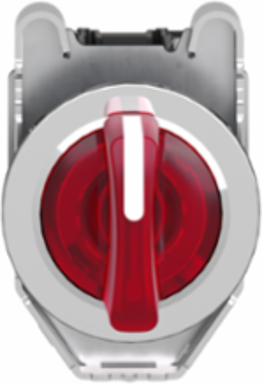

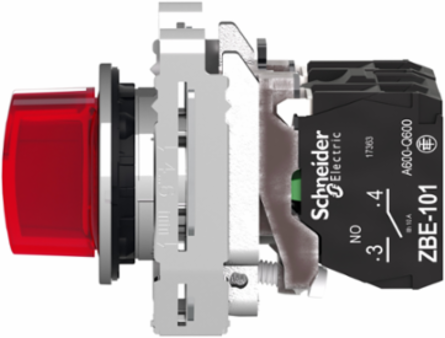

This flush mounted illuminated selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. The source of light is an integral LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a red standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 151 grams, height is 53 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Specifications
Environment
- Product Certifications
- UL listed || CSA || CCC || EAC
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ik Degree Of ProtectionIK04 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Important Information
- Important Message
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1

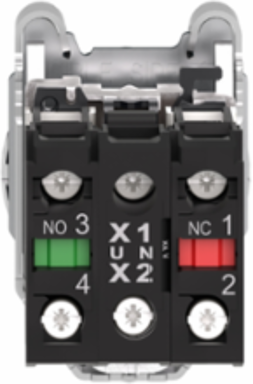

- (13-14)NO || (21-22)NC
- Fixing Mode
- by screws 0.8 N.m 0.8...1.2 Nm)
- Positive Opening
- with NC contact IEC 60947-5-1 appendix K
- Net Weight
- 0.151 kg
- Current Consumption
- 14 mA
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Operating Torque
- 0.14 N.m NO changing electrical state
- Supply Voltage Limits
- 100-132 V AC
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Depth
- 69.5 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height53 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability500000 cycles
Width36.6 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Device Mountingbuilt-in 30.75 mm +/- 0.25 mm
Specifications
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 30.5 mm
- Product Or Component Type
- illuminated selector switch
- Fixing Collar Material
- zamak
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Operator Position Information
- 3 positions +/- 45°
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
Light Sourceuniversal LED
Type Of Operatorstay put
Shape Of Signaling Unit Headround
Head Typebuilt-in-flush
Contacts Type And Composition1 NO + 1 NC
Bezel Materialchromium plated metal
Operator Profilered standard handle
Device Short NameXB4F
Bulb Baseintegral LED
